Pipe Type Thimble
  • Pipe Type Thimble
  • Pipe Type Thimble
Thimbles

Pipe Type Thimble

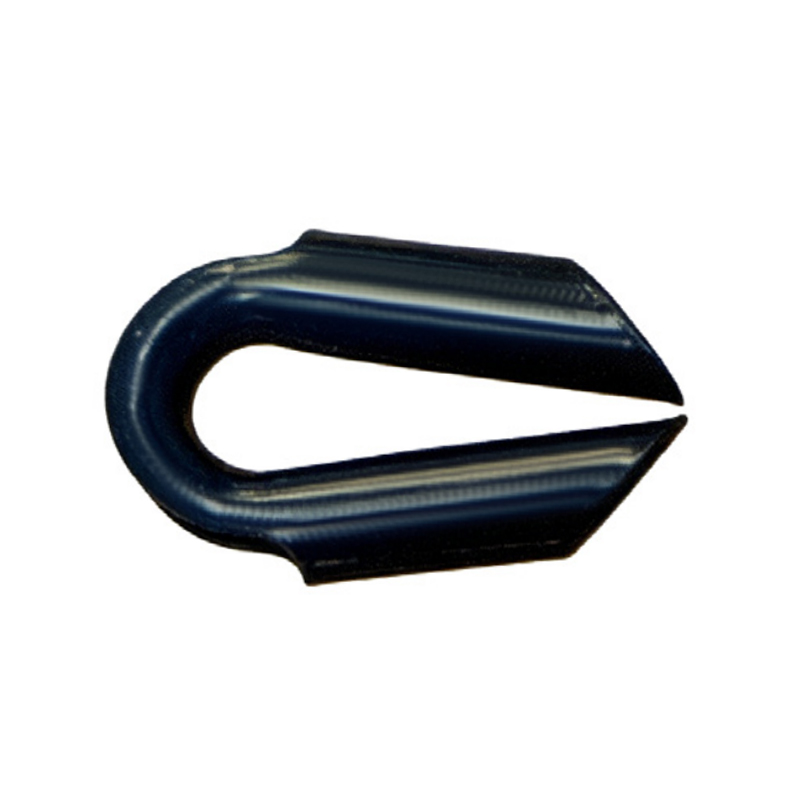

Pipe Type Thimble uses a rounder, pipe-section profile rather than the teardrop shape of the other thimbles in this catalog, sized from 10mm to 65mm rope diameter across seventeen sizes with weight from 0.55 to 17.6 pounds per unit. Its shape is designed to distribute bearing load around a fuller radius than a standard thimble, which suits certain cable assembly and structural rigging applications where the rope makes a wider-radius turn. This profile makes it a distinct alternative to the teardrop-style thimbles elsewhere in the range rather than a simple size variant of them.

Contact Us
PREV: No previous article
NEXT: Galvanized Din 6899 Type Thimble

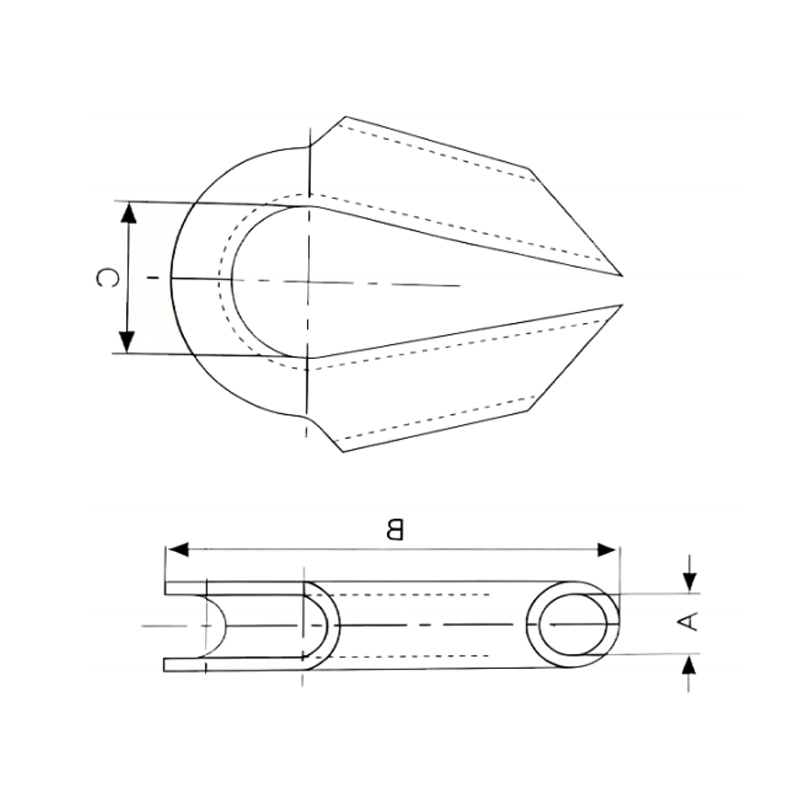

  • Rope Dia (in)

    Dimensions(mm)-A

    Dimensions(mm)-B

    Dimensions(mm)-C

    Weight (lbs)

    10

    12

    90

    23

    0.55

    12

    15

    105

    27

    0.92

    14

    17

    115

    27

    1.10

    16

    19

    120

    32

    1.32

    18

    22

    140

    35

    1.65

    22

    25

    180

    45

    3.08

    24

    28

    180

    45

    3.85

    26

    30

    195

    47

    4.40

    30

    35

    215

    60

    5.28

    36

    40

    240

    65

    6.82

    39

    45

    260

    70

    7.26

    44

    50

    280

    75

    8.93

    46

    55

    298

    85

    10.56

    52

    60

    308

    88

    14.52

    56

    65

    312

    88

    15.83

    62

    70

    332

    90

    17.16

    65

    75

    342

    94

    17.60
