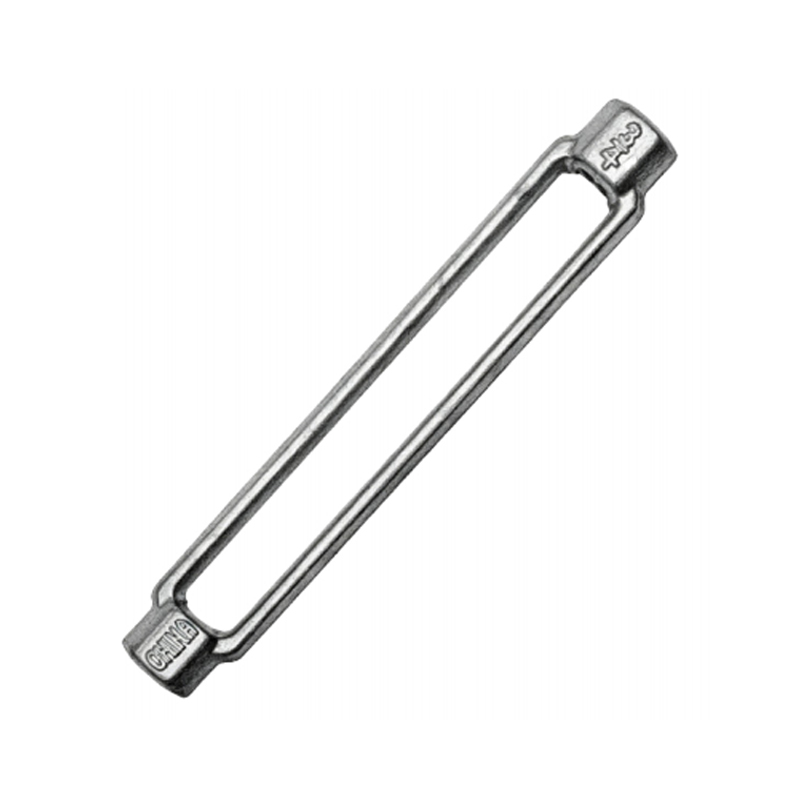

Drop Forged Turnbuckle Body Only
  • Drop Forged Turnbuckle Body Only
  • Drop Forged Turnbuckle Body Only
Turnbuckles

Drop Forged Turnbuckle Body Only

This is the turnbuckle body without hook, eye, or jaw ends attached, offered across the same 1/4 x 4 inch to 2-3/4 x 24 inch size range and 500 to 75,000 pound working load limit as the assembled eye and jaw turnbuckle in this catalog. Selling the body separately lets buyers pair it with whichever end fittings, hooks, eyes, jaws, or custom terminations, their specific rigging setup requires, rather than being locked into a factory-assembled combination. It is typically specified by fabricators and riggers building custom assemblies rather than by buyers looking for a ready-to-install turnbuckle.

Contact Us
PREV: Drop Forged Stub End Turnbuckle
NEXT: Hot Dip Galvanized Drop Forged Turnbuckle Eye & Eye, Jaw & Eye, Jaw & Jaw

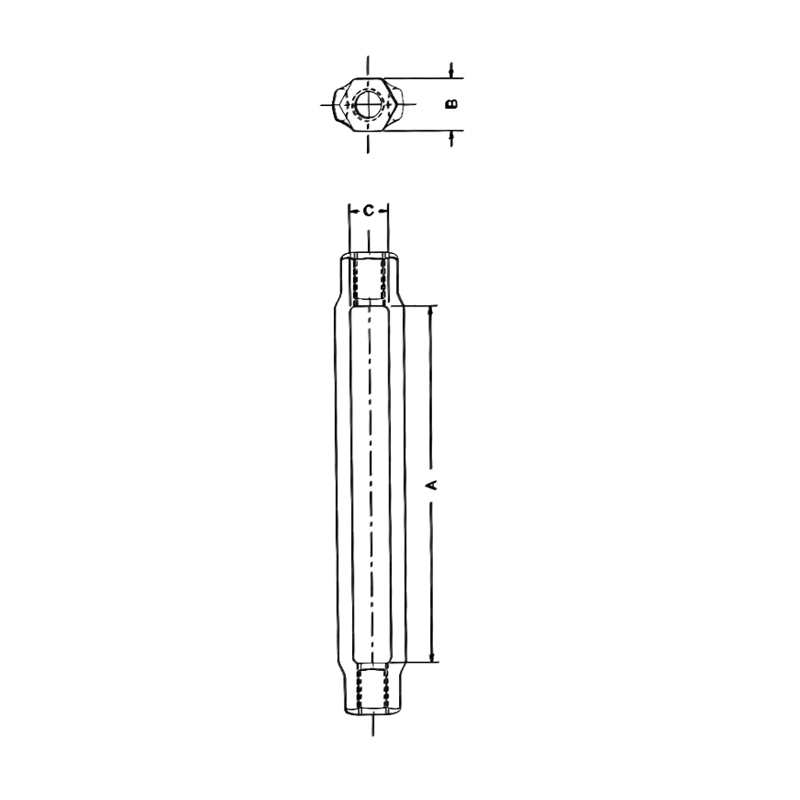

  • Size (in)

    W.L.L.(lbs)

    Weight(lbs)

    Dimensions(in)-A

    Dimensions(in)-B

    Dimensions(in)-C

    1/4×4

    500

    0.15

    4.00

    0.50

    0.38

    5/16×4-1/2

    800

    0.19

    4.50

    0.56

    0.44

    3/8×6

    1200

    0.29

    6.00

    0.62

    0.50

    1/2×6

    2200

    0.60

    6.00

    0.81

    0.62

    1/2×9

    2200

    0.68

    9.00

    0.81

    0.62

    1/2×12

    2200

    1.00

    12.00

    0.81

    0.62

    5/8×6

    3500

    0.90

    6.00

    1.00

    0.75

    5/8×9

    3500

    1.18

    9.00

    1.00

    0.75

    5/8×12

    3500

    1.43

    12.00

    1.00

    0.75

    3/4×6

    5200

    1.30

    6.00

    1.12

    0.94

    3/4×9

    5200

    1.75

    9.00

    1.12

    0.94

    3/4×12

    5200

    2.08

    12.00

    1.12

    0.94

    3/4×18

    5200

    2.50

    18.00

    1.12

    0.94

    7/8×6

    7200

    1.86

    6.00

    1.31

    1.06

    7/8×12

    7200

    2.70

    12.00

    1.31

    1.06

    7/8×18

    7200

    3.80

    18.00

    1.31

    1.06

    1×6

    10000

    2.48

    6.00

    1.50

    1.25

    1×12

    10000

    3.93

    12.00

    1.50

    1.25

    1×18

    10000

    5.28

    18.00

    1.50

    1.25

    1×24

    10000

    7.38

    24.00

    1.50

    1.25

    1-1/4×6

    15200

    3.90

    6.00

    1.88

    1.50

    1-1/4×12

    15200

    5.25

    12.00

    1.88

    1.50

    1-1/4×18

    15200

    7.75

    18.00

    1.88

    1.50

    1-1/4×24

    15200

    9.93

    24.00

    1.88

    1.50

    1-1/2×6

    21400

    5.80

    6.00

    2.25

    1.75

    1-1/2×12

    21400

    8.75

    12.00

    2.25

    1.75

    1-1/2×18

    21400

    11.00

    18.00

    2.25

    1.75

    1-1/2×24

    21400

    13.69

    24.00

    2.25

    1.75

    1-3/4×18

    28000

    16.38

    18.00

    2.62

    2.12

    1-3/4×24

    28000

    21.25

    24.00

    2.62

    2.12

    2×6

    37000

    12.50

    6.00

    3.00

    2.38

    2×24

    37000

    27.60

    24.00

    3.00

    2.38

    2-1/2×6

    60000

    27.00

    6.00

    3.88

    3.12

    2-1/2×24

    60000

    54.00

    24.00

    3.88

    3.12

    2-3/4×24

    75000

    54.00

    24.00

    3.88

    3.12
