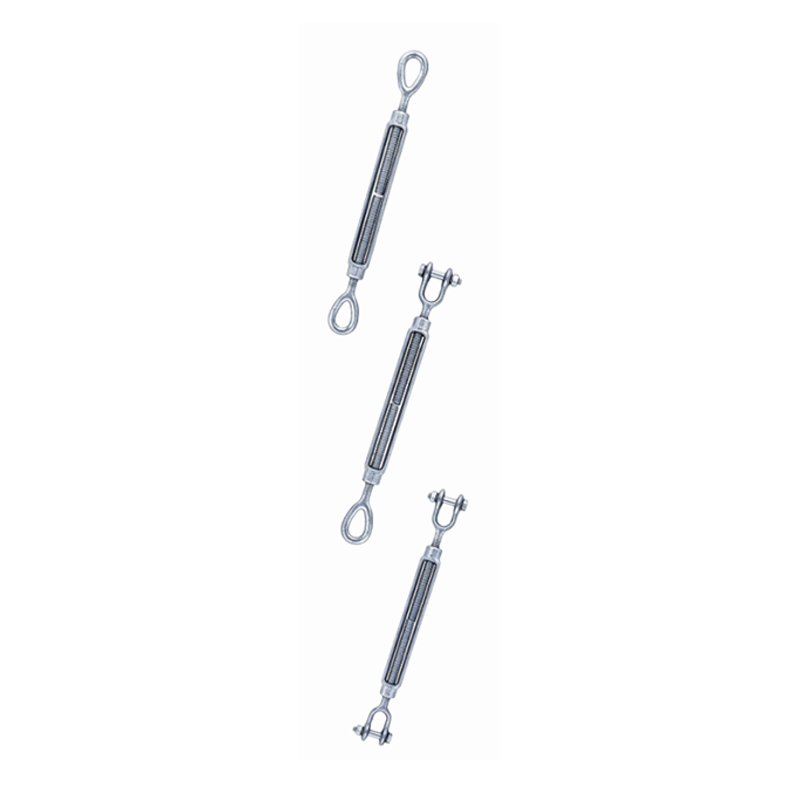

Hot Dip Galvanized Drop Forged Turnbuckle Eye & Eye, Jaw & Eye, Jaw & Jaw
  • Hot Dip Galvanized Drop Forged Turnbuckle Eye & Eye, Jaw & Eye, Jaw & Jaw
  • Hot Dip Galvanized Drop Forged Turnbuckle Eye & Eye, Jaw & Eye, Jaw & Jaw
Turnbuckles

Hot Dip Galvanized Drop Forged Turnbuckle Eye & Eye, Jaw & Eye, Jaw & Jaw

This turnbuckle is offered across three end combinations, eye and eye, jaw and eye, and jaw and jaw, from a single set of 30 thread and take-up sizes ranging from 1/4 x 4 inch to 2-3/4 x 24 inch, with working load limits from 500 to 75,000 pounds, the highest capacity range of any turnbuckle in the catalog. Each end combination is published with its own weight so buyers can select the exact hardware needed at each connection point without over- or under-specifying. Because eye and jaw ends allow direct pin connection to clevises, shackles, or brackets rather than requiring a hook, this turnbuckle is typically specified for structural and permanent rigging applications rather than the quick-connect tie-down use suited to hook-end turnbuckles.

Contact Us
PREV: Drop Forged Turnbuckle Body Only
NEXT: DD-Turnbuckle Self Colored

  • Thread Dia & Take Up

    W.L.L.(lbs)

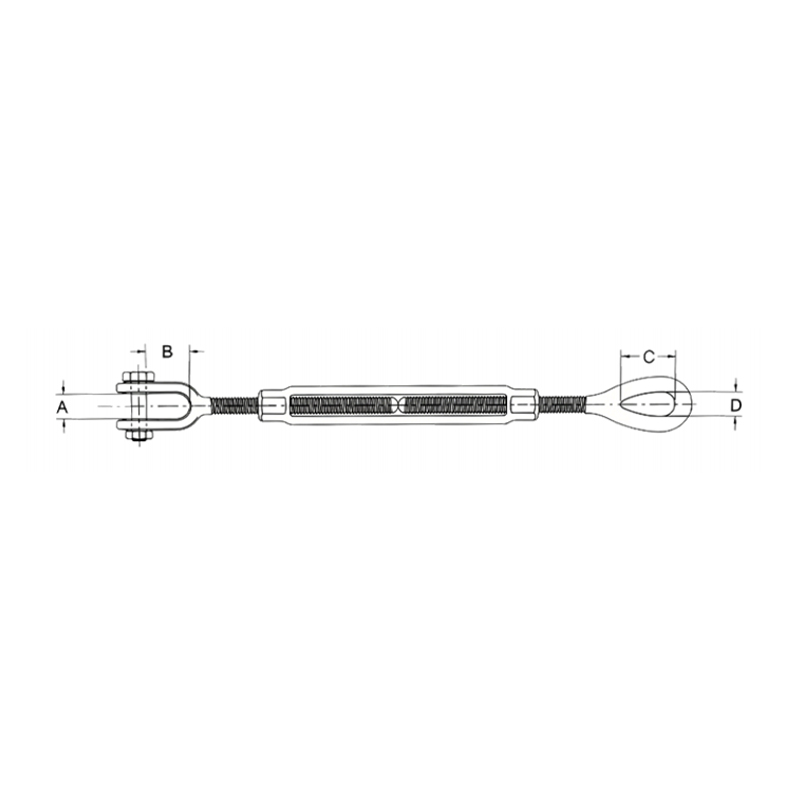

    Dimensions(in)-A

    Dimensions(in)-B

    Dimensions(in)-C

    Dimensions(in)-D

    Weight(lbs) Eye/Eye

    Weight(lbs) Jaw/Eye

    Weight(lbs) Jaw/Jaw

    1/4×4

    500

    0.45

    0.62

    0.78

    0.34

    0.30

    0.32

    0.39

    5/16×4-1/2

    800

    0.50

    0.87

    0.94

    0.44

    0.46

    0.47

    0.54

    3/8×6

    1200

    0.54

    0.87

    1.12

    0.53

    0.73

    0.76

    0.83

    1/2×6

    2200

    0.63

    1.06

    1.44

    0.72

    1.46

    1.53

    1.57

    1/2×9

    2200

    0.55

    1.06

    1.44

    0.72

    1.71

    1.76

    1.95

    1/2×12

    2200

    0.55

    1.06

    1.44

    0.72

    2.19

    2.20

    2.24

    5/8×6

    3500

    0.82

    1.31

    1.75

    0.88

    2.47

    2.65

    2.80

    5/8×9

    3500

    0.82

    1.31

    1.75

    0.88

    2.90

    3.06

    3.35

    5/8×12

    3500

    0.82

    1.31

    1.75

    0.88

    3.48

    3.78

    4.00

    3/4×6

    5200

    1.03

    1.50

    2.09

    1.00

    3.90

    4.00

    4.30

    3/4×9

    5200

    1.03

    1.50

    2.09

    1.00

    4.60

    4.75

    4.89

    3/4×12

    5200

    1.03

    1.50

    2.09

    1.00

    5.46

    5.76

    5.90

    3/4×18

    5200

    1.03

    1.50

    2.09

    1.00

    6.97

    7.00

    7.52

    7/8×6

    7200

    1.23

    1.75

    2.38

    1.25

    5.85

    6.29

    6.84

    7/8×12

    7200

    1.23

    1.75

    2.38

    1.25

    7.65

    8.00

    8.60

    7/8×18

    7200

    1.23

    1.75

    2.38

    1.25

    10.25

    10.60

    11.44

    1×6

    10000

    1.31

    2.06

    3.00

    1.44

    8.98

    9.16

    9.44

    1×12

    10000

    1.31

    2.06

    3.00

    1.44

    11.31

    11.40

    11.53

    1×18

    10000

    1.31

    2.06

    3.00

    1.44

    14.00

    14.75

    16.10

    1×24

    10000

    1.31

    2.06

    3.00

    1.44

    16.02

    17.50

    18.60

    1-1/4×6

    15200

    1.86

    2.81

    3.56

    1.81

    15.45

    16.03

    16.69

    1-1/4×12

    15200

    1.86

    2.81

    3.56

    1.81

    19.00

    20.00

    23.00

    1-1/4×18

    15200

    1.86

    2.81

    3.56

    1.81

    22.50

    24.18

    26.60

    1-1/4×24

    15200

    1.86

    2.81

    3.56

    1.81

    25.00

    28.50

    31.20

    1-1/2×12

    21400

    2.25

    2.81

    4.06

    2.12

    27.00

    31.10

    35.50

    1-1/2×18

    21400

    2.25

    2.81

    4.06

    2.12

    31.69

    35.00

    40.70

    1-1/2×24

    21400

    2.25

    2.81

    4.06

    2.12

    38.20

    44.20

    47.60

    1-3/4×18

    28000

    2.60

    3.38

    4.62

    2.38

    45.20

    48.80

    52.40

    1-3/4×24

    28000

    2.60

    3.38

    4.62

    2.38

    58.00

    60.00

    64.00

    2×24

    37000

    2.62

    3.69

    5.75

    2.69

    81.57

    102.00

    115.00

    2-1/2×24

    60000

    3.06

    4.44

    6.50

    3.12

    180.00

    183.00

    200.00

    2-3/4×24

    75000

    3.68

    4.19

    7.00

    3.25

    210.00

    214.00

    248.00
