Grade 100 Master Links
  • Grade 100 Master Links
Links

Grade 100 Master Links

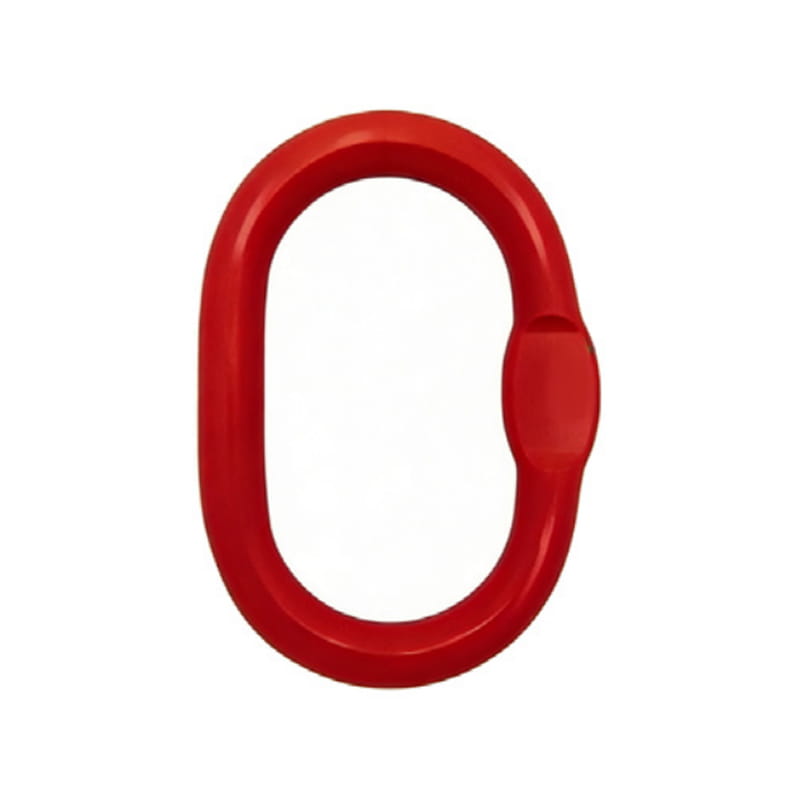

Ask any rigger what a Grade 100 master link is for, and the answer usually comes back to one thing: gathers the legs of a multi-leg chain sling into a single point that connects to the crane hook. That is exactly the role the SAFETYLIFT Grade 100 Master Links plays in a rigging assembly. To meet that demand reliably, GMC manufactures it so that it is forged from Grade 100 alloy steel, heat treated and proof tested to deliver the highest strength-to-weight ratio in the chain sling range. It is most often found in the top fitting of two-, three- and four-leg chain slings used in heavy overhead lifting, and is available in the full size range needed to match the wire rope or chain size already specified in the assembly.

Contact Us
PREV: GRADE 100 MASTER LINK SUB ASSEMBLIES
NEXT: No next article
  • SIZE WORKING LOAD LIMIT (LBS.) WEIGHT/PIECE (LBS.)
    WIRE ROPE OR SYNTHETIC 5:1 CHAIN 4:1
    1/2" 4,800 6,000 0.80
    5/8" 6,880 8,600 1.50
    3/4" 10,320 12,900 2.40
    7/8" 14,080 17,600 3.30
    1" 24,000 30,000 5.10
    1‑1/4" 31,280 39,100 8.80
    1‑1/2" 48,880 61,100 16.00
    1‑3/4" 63,440 79,300 27.50
    2" 82,880 103,600 36.00
