Hot Dip Galvanized Drop Forged Anchor Shackle
  • Hot Dip Galvanized Drop Forged Anchor Shackle
  • Hot Dip Galvanized Drop Forged Anchor Shackle
  • Hot Dip Galvanized Drop Forged Anchor Shackle
  • Hot Dip Galvanized Drop Forged Anchor Shackle
Shackle

Hot Dip Galvanized Drop Forged Anchor Shackle

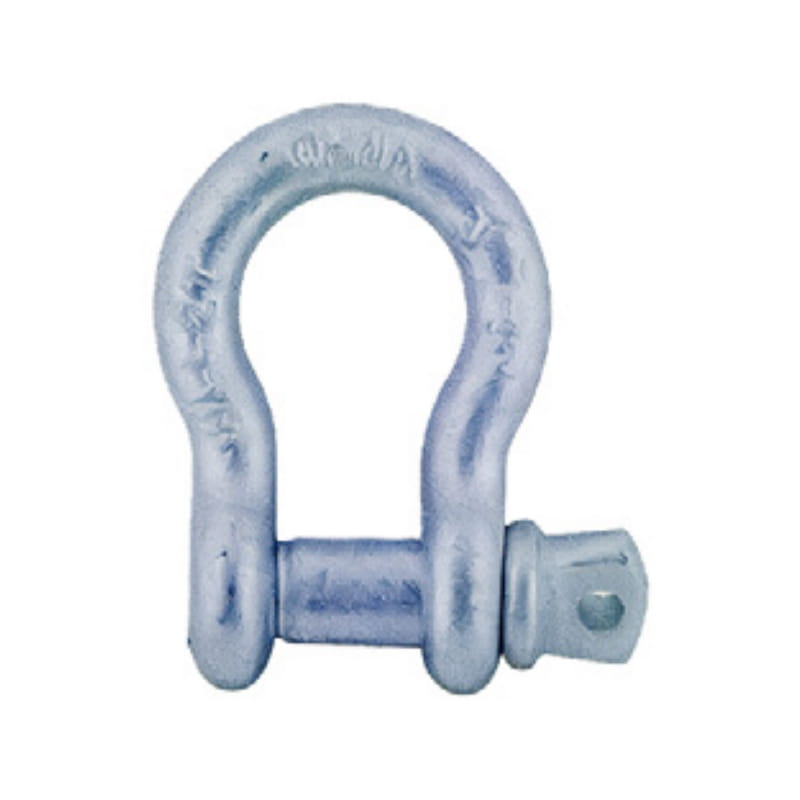

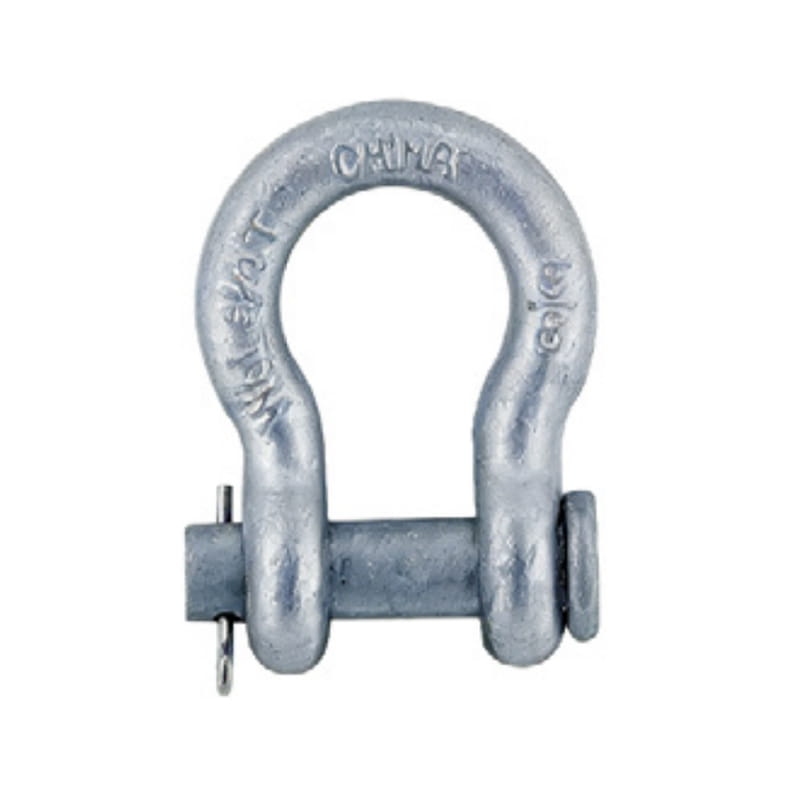

Reliability starts with the fitting itself. The SAFETYLIFT Hot Dip Galvanized Drop Forged Anchor Shackle, a galvanized anchor (bow) shackle, accepts two or more sling legs, chains or hooks on a single screw pin thanks to its wider, rounded bow, and GMC manufactures it so that it is drop forged from certified alloy steel, individually proof tested and hot dip galvanized for corrosion resistance. Because it is intended for multi-leg slinging, mooring, towing and marine or offshore rigging exposed to weather and salt spray, every piece is produced and checked in line with Federal Specification RR-C-271 and comparable commercial grades before it is released to stock, giving fabricators a dependable, drop-in replacement for worn or missing hardware.

Contact Us
PREV: Heavy Dutywebbing Shackle
NEXT: Galvanized Din 82101 Shackle

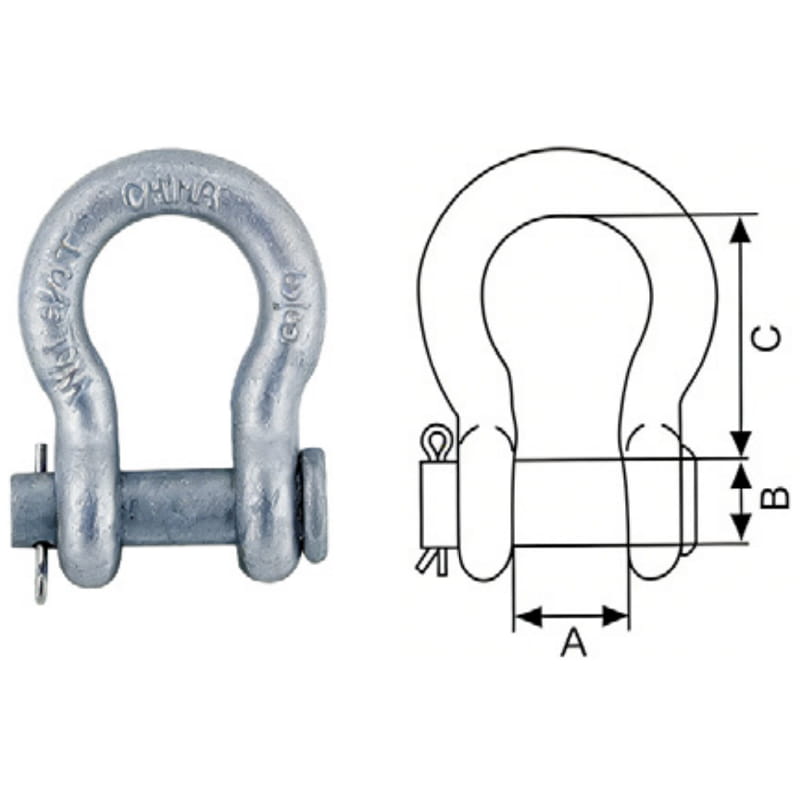

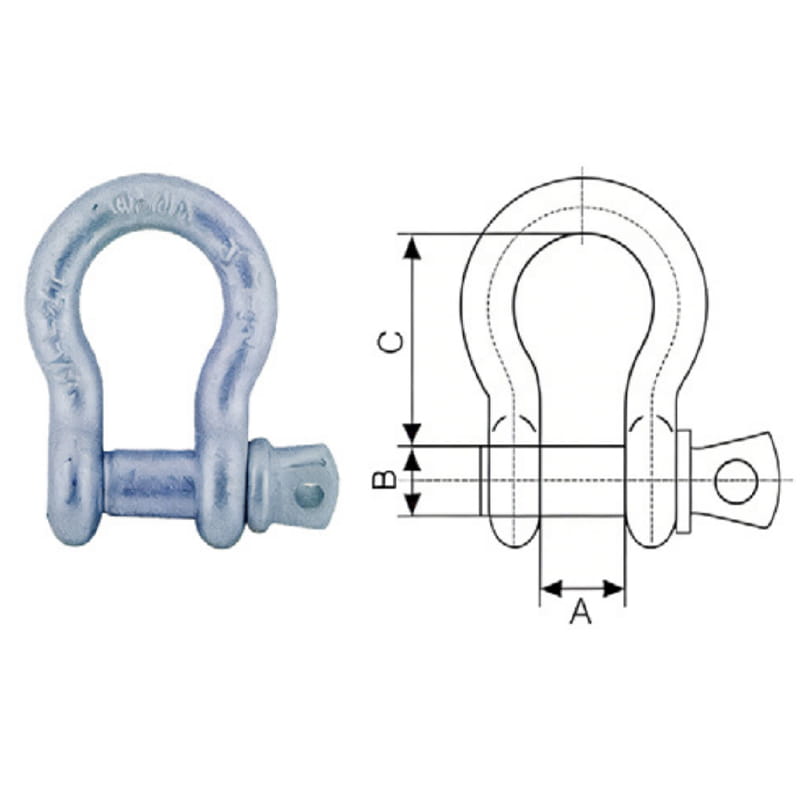

  • Nominal Size(in) W.L.L.(tons) Dimensions(in) Weight (lbs) Screw Pin Type Weight (lbs) Round Pin Type
    A B C
    3/16 1/3 0.38 0.25 0.88 0.06 0.06
    1/4 1/2 0.47 0.31 1.13 0.10 0.13
    5/16 3/4 0.53 0.38 1.22 0.19 0.18
    3/8 1 0.66 0.44 1.44 0.31 0.29
    7/16 1 1/2 0.75 0.50 1.69 0.38 0.38
    1/2 2 0.81 0.63 1.88 0.72 0.71
    5/8 3 1/4 1.06 0.75 2.38 1.37 1.50
    3/4 4 3/4 1.25 0.88 2.81 2.35 2.32
    7/8 6 1/2 1.44 1.00 3.31 3.62 3.49
    1 8 1/2 1.69 1.13 3.75 5.03 5.00
    1 1/8 9 1/2 1.81 1.25 4.25 7.41 6.97
    1 1/4 12 2.03 1.38 4.69 9.05 9.75
    1 3/8 13 1/2 2.25 1.50 5.25 13.53 13.25
    1 1/2 17 2.38 1.63 5.75 17.20 17.25
    1 3/4 25 2.88 2.00 7.00 27.78 29.46
    2 35 3.25 2.25 7.75 45.00 45.75
    2 1/2 55 4.13 2.75 10.50 85.75 87.12

    *Ultimate load is 6 times working load limit
