Galvanized Standard Wire Rope Thimble
  • Galvanized Standard Wire Rope Thimble
  • Galvanized Standard Wire Rope Thimble
Thimbles

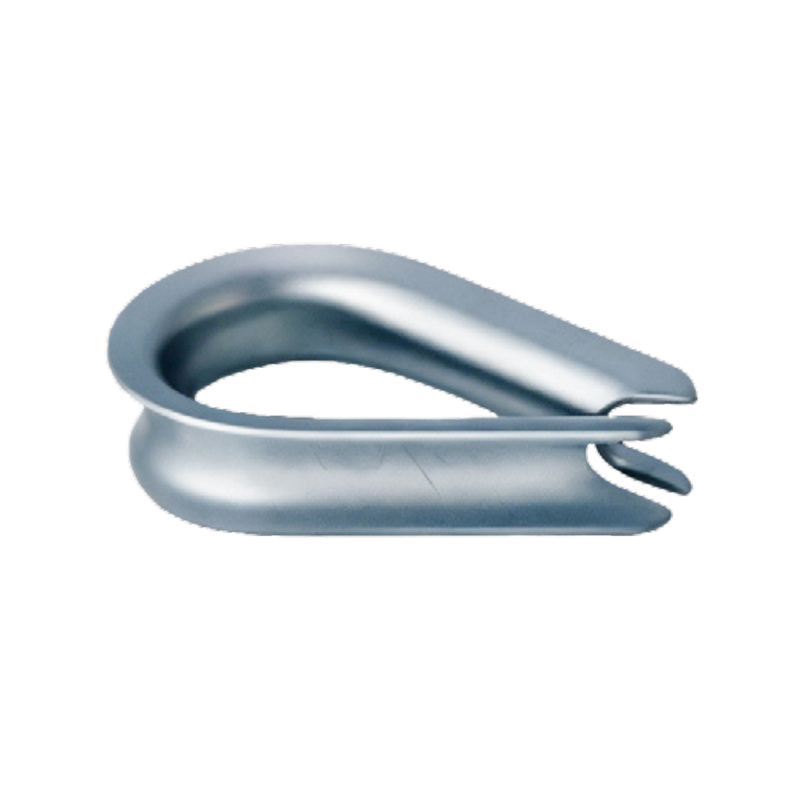

Galvanized Standard Wire Rope Thimble

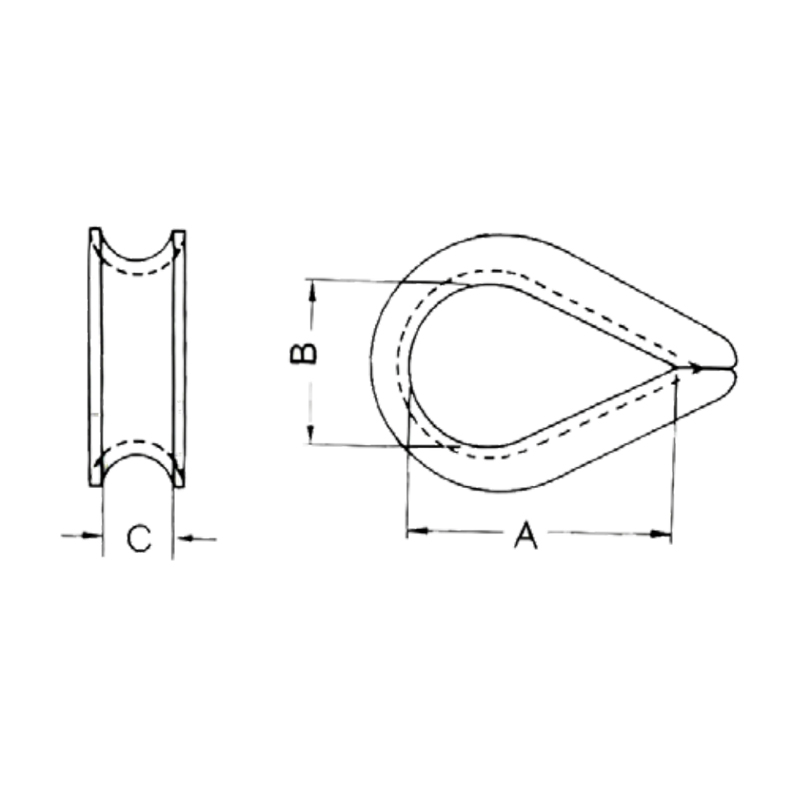

This is the baseline wire rope thimble in the catalog, covering the widest size range of any thimble offered, from 1/8 inch to 2-1/2 inch rope diameter across eighteen sizes. Weight per 100 units runs from 3.5 pounds at the smallest size to 880 pounds at the largest, with A, B, and C dimensions published for every size to confirm eye fit. As a standard-profile thimble, it is designed for general-purpose eye protection rather than the extra reinforcement of a heavy-duty or gusseted design, making it the default specification wherever a rope eye needs a smooth internal bearing surface without unusual load demands.

Contact Us
PREV: Galvanized Bs464 Wire Rope Thimble
NEXT: No next article

  • Rope Dia (in)

    Weight Per 100 (lbs)

    A

    B

    C

    1/8

    3.50

    1.31

    0.69

    0.16

    3/16

    3.50

    1.31

    0.69

    0.22

    1/4

    3.50

    1.31

    0.69

    0.28

    5/16

    4.00

    1.50

    0.81

    0.34

    3/8

    6.70

    1.63

    0.94

    0.41

    1/2

    12.50

    1.88

    1.13

    0.53

    5/8

    34.50

    2.25

    1.38

    0.66

    3/4

    47.10

    2.50

    1.63

    0.78

    7/8

    84.60

    3.50

    1.88

    0.94

    1

    97.50

    4.25

    2.50

    1.06

    1-1/8-1-1/4

    175.00

    4.50

    2.75

    1.31

    1-3/8

    278.52

    7.54

    3.54

    1.42

    1-1/2

    313.28

    8.11

    4.13

    1.56

    1-5/8

    379.72

    9.06

    4.33

    1.69

    1-3/4

    487.96

    9.59

    4.33

    1.81

    1-7/8

    512.60

    10.40

    4.50

    2.05

    2

    616.00

    10.63

    4.50

    2.09

    2-1/2

    880.00

    11.63

    5.98

    2.52
