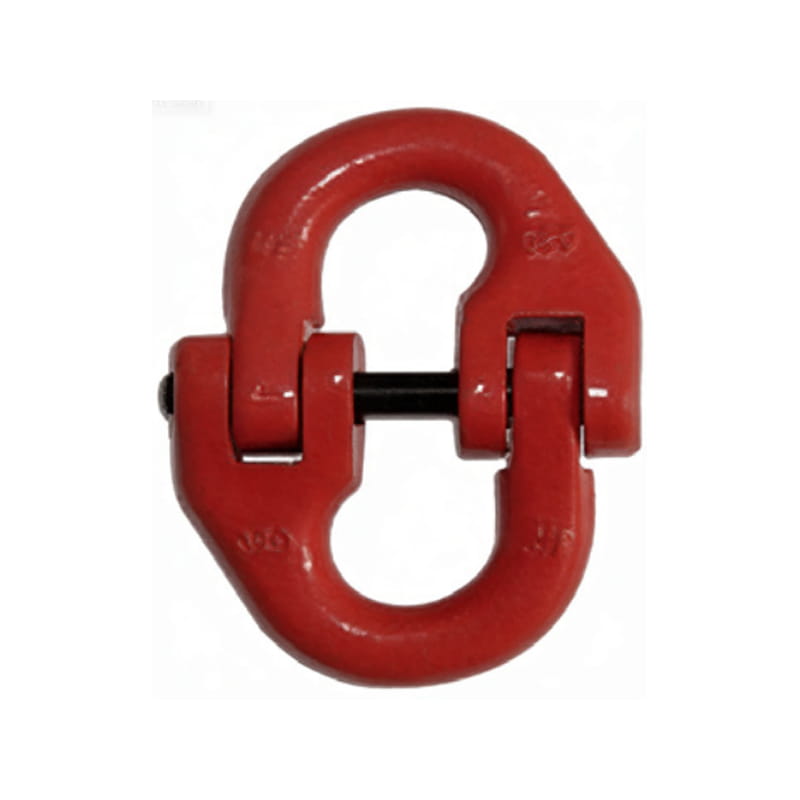

Grade 80 Coupling Links

Name: Grade 80 Coupling Links
Rating: 5 (99 reviews)

When a rigging assembly calls for a Grade 80 coupling link, the SAFETYLIFT Grade 80 Coupling Links is built to do the job: connects two chain lengths, or chain to another fitting, without welding. It is forged from Grade 80 alloy steel and heat treated to match the working load limit of Grade 80 chain. GMC supplies this fitting for configuring, repairing or extending Grade 80 chain slings and rigging assemblies, and stocks a full range of sizes so that fabricators can match the fitting to the wire rope, chain or sling already in use rather than redesigning an assembly around a single available size.

PREV: Grade 80 Pear Shaped Links
NEXT: Grade 100 Omega Links

Basic Information

SIZE WORKING LOAD LIMIT (LBS.) WEIGHT/PIECE (LBS.)

9/32"-5/16" 4,500 0.40

3/8" 7,100 0.65

1/2" 12,000 1.50

5/8" 18,100 2.51

3/4" 28,300 4.12

About Us

Since 2004,
Xintiande Metals has always been specialised in the field of steel wire rope manufacturing.

The factory covers an area of 20,000 square metres and employs more than 200 people, including more than 20 engineers and technicians. As Grade 80 Coupling Links Suppliers in China, equipped with advanced equipments and total quality control system, the factory has strong international supply capability. supply Wholesale Grade 80 Coupling Links. To meet diversified application demands, GMC offers industry-leading custom services covering material selection, structural design, and mechanical property adjustments. We collaborate closely with clients to deeply understand their unique requirements, supporting full lifecycle management from prototyping to mass production.
