Hot Dip Galvanized Drop Forged Chain Shackle
  • Hot Dip Galvanized Drop Forged Chain Shackle
  • Hot Dip Galvanized Drop Forged Chain Shackle
  • Hot Dip Galvanized Drop Forged Chain Shackle
  • Hot Dip Galvanized Drop Forged Chain Shackle
Shackle

Hot Dip Galvanized Drop Forged Chain Shackle

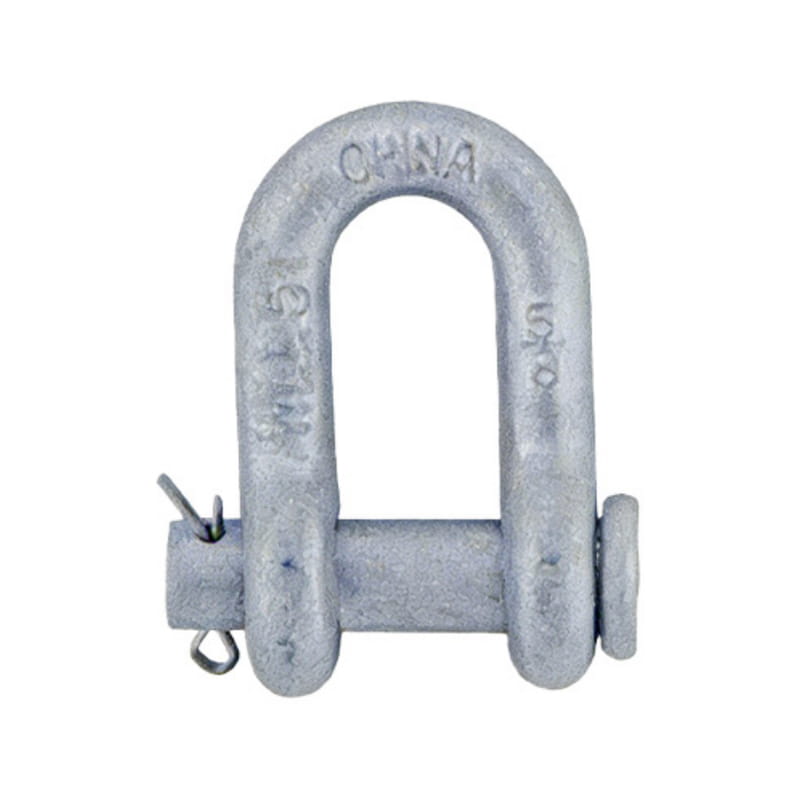

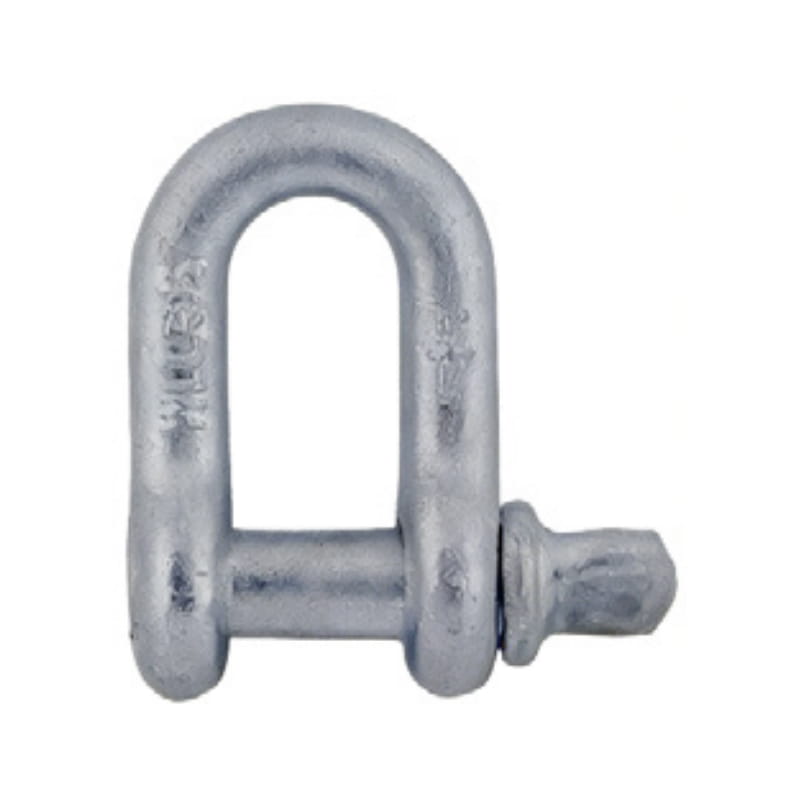

When a rigging assembly calls for a galvanized chain (dee) shackle, the SAFETYLIFT Hot Dip Galvanized Drop Forged Chain Shackle is built to do the job: connects chain, wire rope or slings in an in-line, straight-pull configuration. It is drop forged in one piece from high-strength alloy steel, quenched and tempered, then hot dip galvanized for corrosion protection. GMC supplies this fitting for single-leg lifts, chain sling assemblies, marine mooring and general industrial rigging exposed to outdoor or marine conditions, and stocks a full range of sizes so that fabricators can match the fitting to the wire rope, chain or sling already in use rather than redesigning an assembly around a single available size.

Contact Us
PREV: Hot Dip Galvanized Drop Forged Bolt-Type Shackle
NEXT: U.S. Type Commercial Shackle

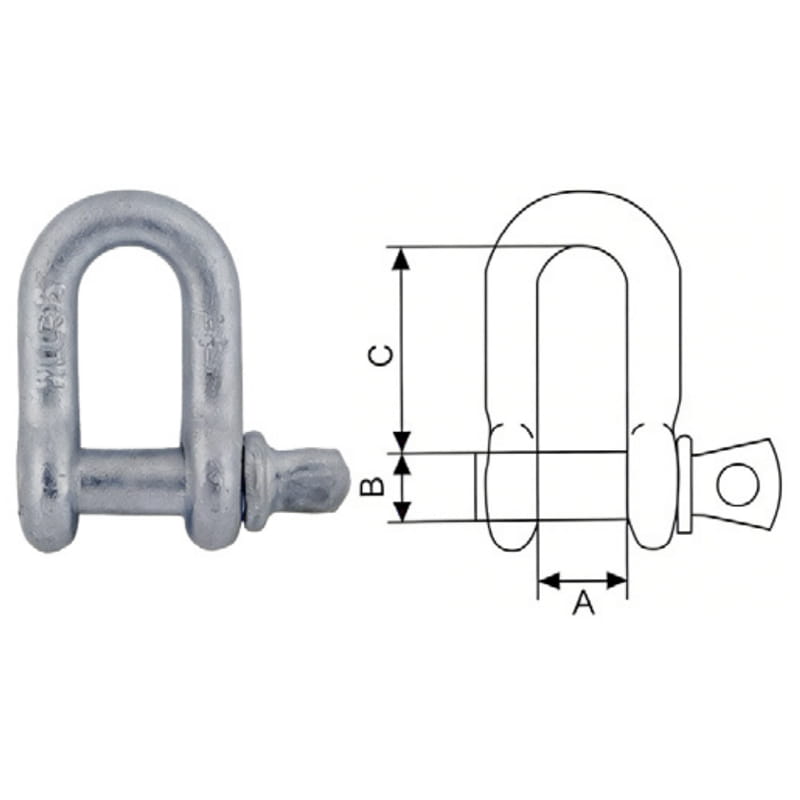

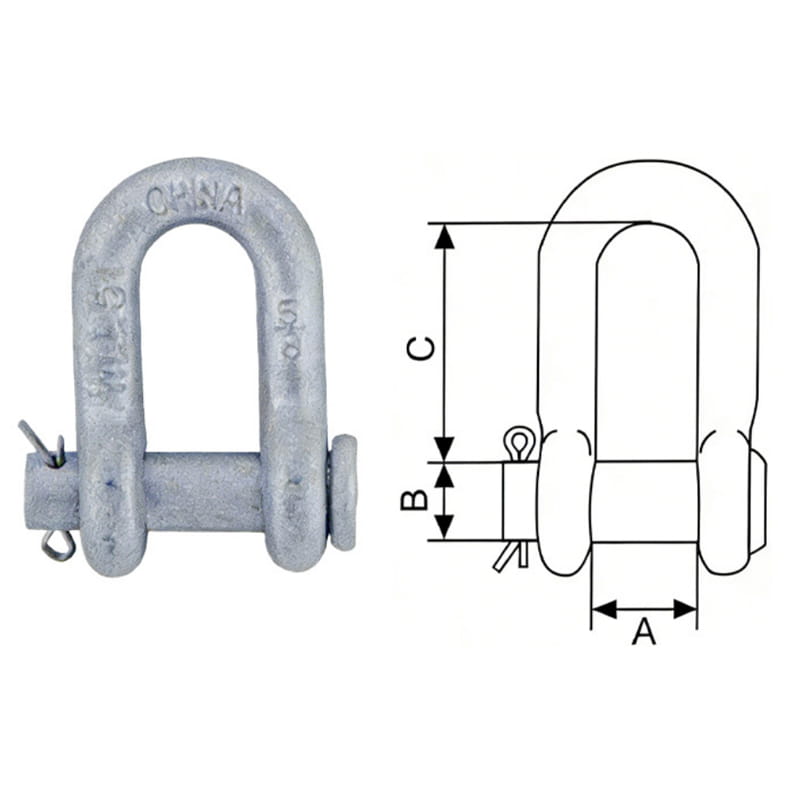

  • Nominal Size(in) W.L.L.(tons) Dimensions(in) Weight (lbs) Screw Pin Type Weight (lbs) Round Pin Type
    A B C
    1/4 1/2 0.47 0.31 0.88 0.11 0.11
    5/16 3/4 0.53 0.38 1.03 0.17 0.18
    3/8 1 0.66 0.44 1.25 0.28 0.25
    7/16 1 1/2 0.75 0.50 1.44 0.43 0.40
    1/2 2 0.81 0.63 1.63 0.59 0.50
    5/8 3 1/4 1.06 0.75 2.00 1.25 1.21
    3/4 4 3/4 1.25 0.88 2.38 2.63 2.00
    7/8 6 1/2 1.44 1.00 2.81 3.16 3.28
    1 8 1/2 1.69 1.13 3.19 4.75 4.75
    1 1/8 9 1/2 1.81 1.25 3.58 6.75 6.30
    1 1/4 12 2.03 1.38 3.94 9.06 9.00
    1 3/8 13 1/2 2.25 1.50 4.38 11.63 12.00
    1 1/2 17 2.38 1.63 4.81 15.95 16.15
    1 3/4 25 2.88 2.00 5.75 26.75 29.96
    2 35 3.25 2.25 6.75 42.31 43.25
    2 1/2 55 4.13 2.75 8.00 71.15 73.33

    *Ultimate load is 6 times working load limit
