Aluminium Ferrules Specification EN 13411-3(DIN 3093)
  • Aluminium Ferrules Specification EN 13411-3(DIN 3093)
  • Aluminium Ferrules Specification EN 13411-3(DIN 3093)
Sleeves

Aluminium Ferrules Specification EN 13411-3(DIN 3093)

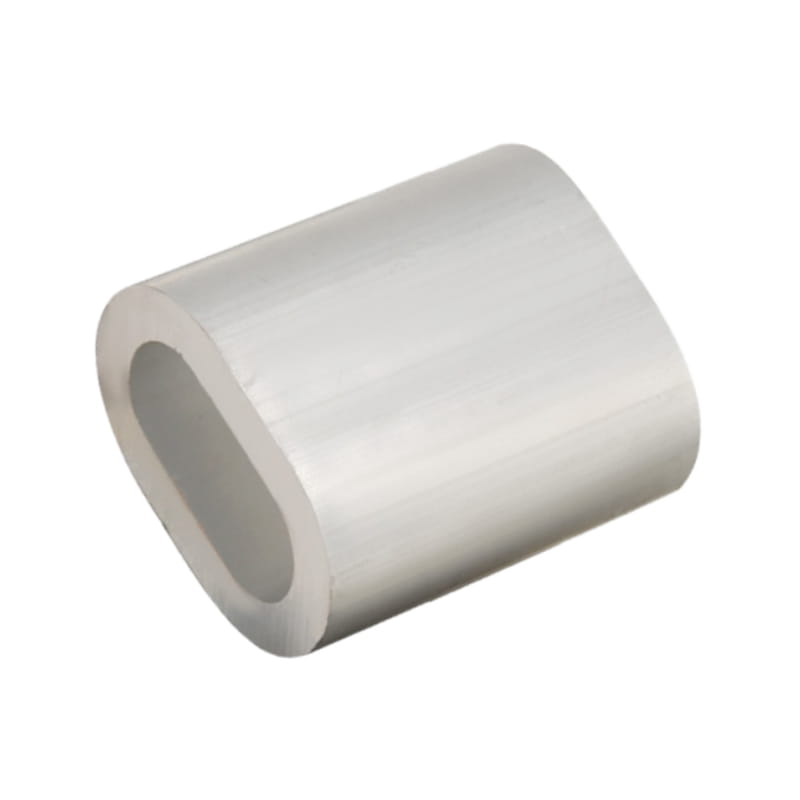

SAFETYLIFT aluminum ferrules are manufactured per EN13411-3 (DIN 3093) from #1 to #60. For safety in fabrication and application, our ferrules are made of materials strictly corresponding to the requirements of EN 13411-3(DIN 3093) regarding material composition and mechanical properties.

Contact Us
PREV: Aluminium Oval Sleeves
NEXT: No next article

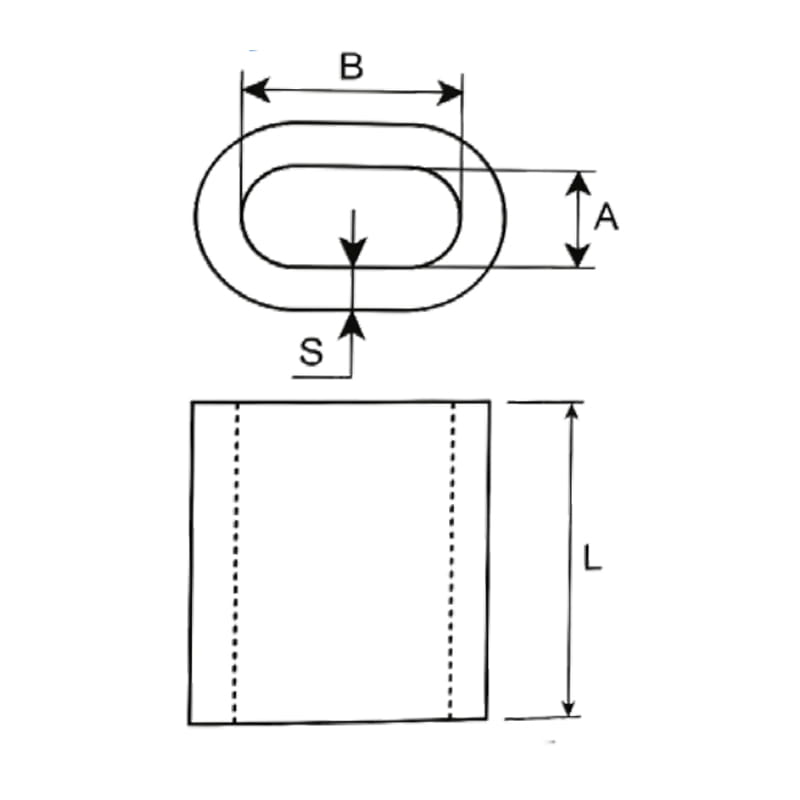

  • FERRULE CODE. A (mm) B (mm) S (mm) L (mm) WEIGHT
    Kgs/1000Pcs    		 L'(mm)
    GB 6946‑93
    1 1.2 2.4 0.65 5 0.098 -
    1.5 1.7 3.4 0.75 6 0.176 -
    2 2.2 4.4 0.85 7 0.285 -
    2.5 2.7 5.4 1.05 9 0.439 -
    3 3.3 6.6 1.25 11 0.907 -
    3.5 3.8 7.6 1.5 13 1.18 -
    4 4.4 8.8 1.7 14 1.63 -
    4.5 4.9 9.8 1.9 16 2.39 -
    5 5.5 11.0 2.1 18 3.62 -
    6 6.6 13.2 2.5 21 5.87 25
    6.5 7.2 14.4 2.7 23 7.18 -
    7 7.8 15.6 2.9 25 9.83 30
    8 8.8 17.6 3.3 28 12.96 34
    9 9.9 19.8 3.7 32 18.94 38
    10 10.9 21.8 4.1 35 24.09 42
    11 12.1 24.2 4.5 39 35.35 47
    12 13.2 26.4 4.9 42 44.18 50
    13 14.2 28.4 5.4 46 59.86 55
    14 15.3 30.6 5.8 49 73.5 59
    16 17.5 35.0 6.7 56 111 67
    18 19.6 39.2 7.6 63 156 76
    20 21.7 43.4 8.4 70 217 84
    22 24.3 48.6 9.2 77 292 92
    24 26.4 52.8 10.0 84 376 101
    26 28.5 57.0 10.9 91 481 109
    28 31.0 62.0 11.7 98 603 118
    30 33.1 66.2 12.5 105 739 126
    32 35.2 70.4 13.4 112 897 134
    34 37.8 75.6 14.2 119 1077 143
    36 39.8 79.6 15.0 126 1275 152
    38 41.9 83.8 15.8 133 1503 160
    40 44.0 88.0 16.6 140 1734 168
    42 46.2 92.4 17.5 147 2024 -
    44 48.4 96.8 18.3 154 2314 184
