Aluminium Oval Sleeves Suppliers

Home / Products / Wire Rope Accessories / Sleeves / Aluminium Oval Sleeves

Aluminium Oval Sleeves
  • Aluminium Oval Sleeves
  • Aluminium Oval Sleeves
Sleeves

Aluminium Oval Sleeves

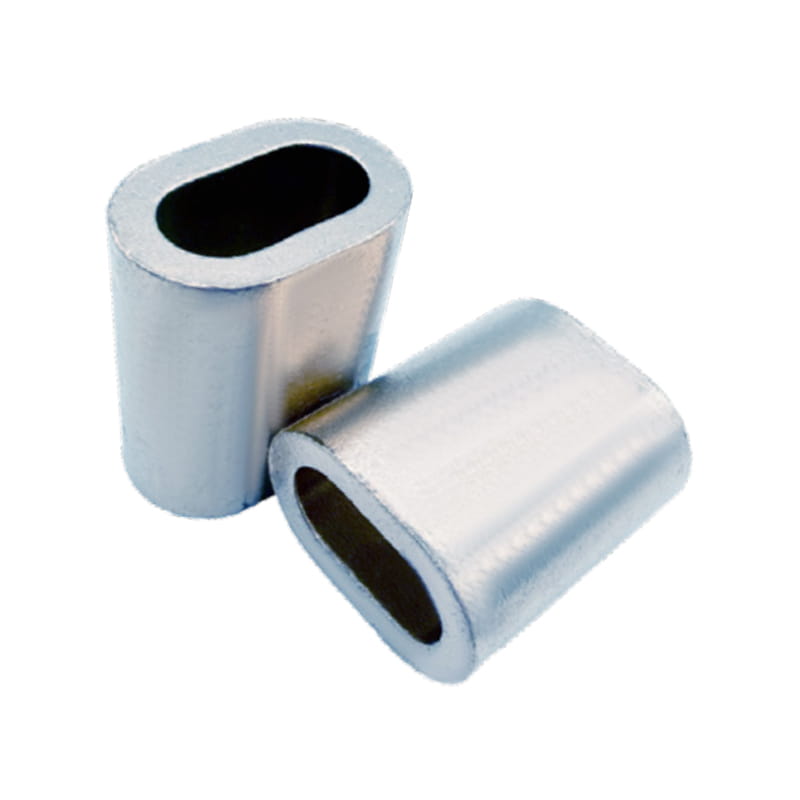

SAFETYLIFT ALUMINUM OVAL SLEEVES are extruded from a high-quality aluminium alloy and heat-treated for excellent cold forming or swaging qualities. Return eye splice using SAFETY ALUMINIUM SLEEVES will attain 95% of Improved plow wire rope catalog strength when properly swaged. CAUTION: Return eye slings using oval aluminium sleeves must be properly swaged to attain strength.

Contact Us
PREV: Aluminium Hourglass Sleeves
NEXT: Aluminium Ferrules Specification EN 13411-3(DIN 3093)

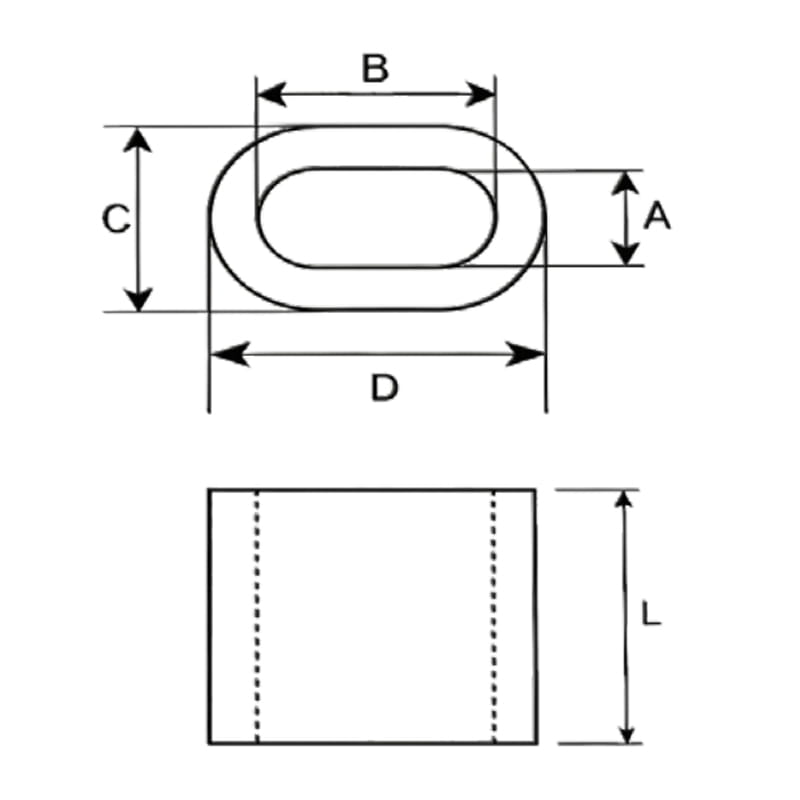

  • SIZE A (in) B (in) C (in) D (in) (in) WEIGHT
    Lbs/100Pcs
    1/4" 19/64 19/32 17/32 27/32 1 2.3
    5/16" 3/8 3/4 21/32 1 1/32 1 17/84 4.3
    3/8" 7/16 27/32 3/4 1 5/32 1 3/8 5.3
    7/16" 1/2 1 29/32 1 13/32 1 23/32 11
    1/2" 19/32 1 11/64 1 1/32 1 5/8 1 15/16 16.5
    9/16" 23/32 1 3/8 1 7/32 1 57/64 2 7/32 22
    5/8" 3/4 1 1/2 1 3/8 2 3/32 2 1/2 32
    3/4" 53/64 1 11/16 1 1/2 2 3/8 2 7/8 52
    7/8" 61/64 1 7/8 1 11/16 2 5/8 3. 67
    1" 1 3/32 2 7/32 1 31/32 3 3/32 3 3/4 125
    1 1/8" 1 9/32 2 9/16 2 5/16 3 19/32 4 9/32 172
    1 1/4" 1 13/32 2 25/32 2 1/2 3 7/8 4 7/16 214
    1 1/2" 1 21/32 3 19/64 3 1/8 4 3/4 5 35/64 390
