G80 Clevis Sling Hook

The G80 CLEVIS sling hook is an essential connector for industrial lifting applications. Made of G80-grade alloy steel, it offers reliable strength and wear resistance. Suitable for lifting components such as chains and slings, it connects to the pin via a Clevis structure for easy installation and removal.

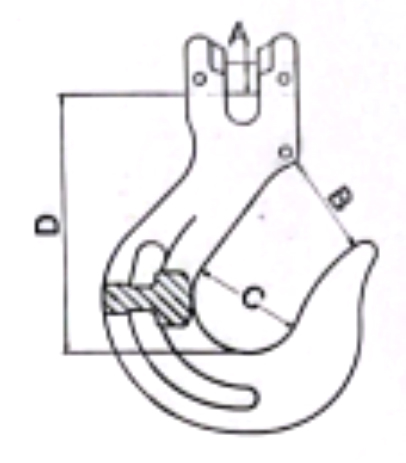

This product is available in multiple sizes, with stock numbers corresponding to different parameters. For example, the GMC270281/L (9/32-1/4 inch gauge) has a working load limit (W.L.L.) of 3500 lbs, dimensions A=0.359 inch, B=1.438 inch, C=1.750 inch, and D=3.719 inch, and weighs 0.95 lbs per unit (0.97 lbs with safety latch). The GMC270625/L (5/8 inch gauge) has a W.L.L. of 18,100 lbs, dimension D=6.594 inch, and weighs 8.00 lbs per unit (8.06 lbs with safety latch). Flexible selection is available based on lifting load and space requirements.

The safety latch design enhances safety and prevents objects from slipping. The G80 material is suitable for medium- to high-load lifting applications, such as factory equipment handling and warehouse cargo loading and unloading. The dimensions and weight parameters of each specification are clear, which makes it easy for users to combine the load-bearing capacity of the lifting machinery and the planning of the working space to meet the safety lifting needs under different working conditions.
