Wire Rope Hook / Lifting Hook
High-Performance Din689 Lifting Eye Hook

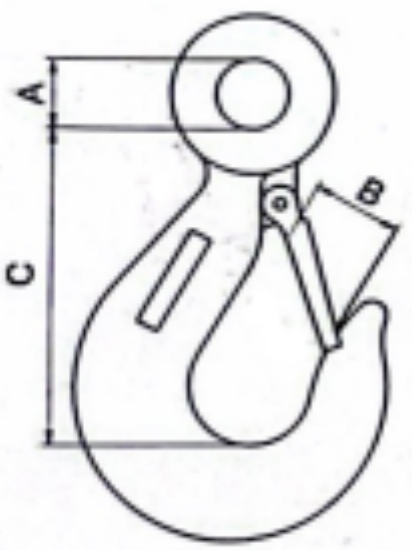

| Stock No. | W.L.L.(KGS) | Dimension(mm) | Weight(LBS/PC) | ||
| A | B | C | |||
| GMC480250 | 250 | 12 | 18 | 64 | 0.35 |
| GMC480500 | 500 | 16 | 24 | 85 | 0.79 |
| GMC481000 | 1000 | 20 | 33 | 116 | 1.78 |
| GMC481600 | 1600 | 26 | 39 | 138 | 3.19 |
| GMC482500 | 2500 | 32 | 49 | 174 | 6.49 |
| GMC483200 | 3200 | 36 | 54 | 190 | 7.70 |
| GMC484000 | 4000 | 40 | 62 | 219 | 12.87 |
| GMC485000 | 5000 | 46 | 69 | 246 | 18.26 |
| GMC486300 | 6300 | 52 | 78 | 277 | 25.74 |
| Stock No. | W.L.L.(KGS) | Dimensions(mm) | Weight(KGS) | ||
| A | B | C | |||
| EH689LATCH0250 | 250 | 12 | 18 | 64 | 0.35 |
| EH689LATCH0500 | 500 | 16 | 24 | 85 | 0.79 |
| EH689LATCH1000 | 1000 | 20 | 33 | 116 | 1.78 |
| EH689LATCH1600 | 1600 | 26 | 39 | 138 | 3.19 |
| EH689LATCH2500 | 2500 | 32 | 49 | 174 | 6.49 |
| EH689LATCH3200 | 3200 | 36 | 54 | 190 | 7.70 |
| EH689LATCH4000 | 4000 | 40 | 62 | 219 | 12.87 |
| EH689LATCH5000 | 5000 | 46 | 69 | 246 | 18.26 |
| EH689LATCH6300 | 6300 | 52 | 78 | 277 | 25.74 |
The high-performance DIN689 lifting eye hook is a precision-engineered lifting component compliant with the German DIN689 standard, designed for safe and reliable load handling in industrial, construction, and logistics scenarios. It is ideal for suspending machinery, equipment, or heavy materials during installation, maintenance, or transportation—especially suited for applications requiring consistent load-bearing stability, such as factory assembly lines, warehouse inventory movement, and construction site hoisting.
Available in 9 standardized models (stock numbers: GMC480250 to GMC486300), the product covers a wide load range from 250 kgs to 6300 kgs, with corresponding dimensions (A: 12–52 mm, B: 18–78 mm, C: 64–277 mm) and weights (0.35–25.74 lbs/PC) to match diverse lifting needs. Crafted from high-quality carbon steel, it undergoes forging, quenching, and tempering processes to ensure durability, while its 4:1 safety factor provides an extra layer of protection against overloading. Common surface treatments (e.g., electro-galvanization) enhance corrosion resistance, making it suitable for both indoor and mild outdoor environments.
Its key advantages lie in standardized dimensions (for easy compatibility with existing lifting systems), clear load capacity marking (for quick model selection), and consistent structural strength—helping users streamline operations and reduce safety risks during lifting tasks.
