Galvanized DIN 82101 Form A Shackle Manufacturers

Home / Products / Accessories / Wire Rope Shackle / Galvanized DIN 82101 Form A Shackle

Galvanized DIN 82101 Form A Shackle
Wire Rope Shackle

Galvanized DIN 82101 Form A Shackle

Features:
Material: Galvanized steel for corrosion protection
Type: DIN 82101 Form A Shackle
Application: Rigging, lifting, hoisting, and industrial connections
Wide load range from 100 lbs to 25,000 lbs
Precision-engineered to DIN 82101 standards
Smooth surface finish reduces wear on attached cables and slings

Typical Applications:
Lifting and hoisting operations
Industrial rigging assemblies
Marine and construction lifting systems
Secure connections for chains, wire ropes, and slings

Galvanized DIN 82101 form a shackles are high-quality rigging components designed for secure connections in lifting, hoisting, and industrial applications. Manufactured from durable galvanized steel, these shackles provide excellent corrosion resistance, mechanical strength, and long-lasting reliability in both indoor and outdoor environments.

Form a shackles feature a robust design that ensures safe load handling while minimizing deformation under heavy loads. They are precision-engineered to meet DIN 82101 standards, providing consistent performance and compatibility with various slings, chains, and wire ropes.

Contact Us
PREV: Hot-Dip Galvanized Drop Forged Anchor Shackles
NEXT: No next article

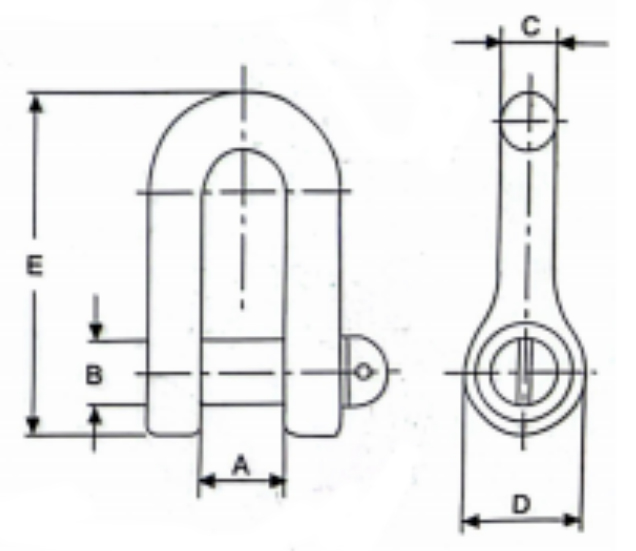

  • Stock No. W.L.L.(LBS) Dimension(mm) Weight(KGS/PC)
    A B C D E
    GMC53M05A82101 100 7 5 5 10 28 0.013
    GMC53M06A82101 160 8 6 6 12 33 0.021
    GMC53M08A82101 250 11 8 8 16 44 0.048
    GMC53M10A82101 400 14 10 10 20 55 0.083
    GMC53M12A82101 600 17 12 12 24 66 0.156
    GMC53M16A82101 1000 21 16 15 32 88 0.330
    GMC53M20A82101 1600 27 20 19 40 110 0.710
    GMC53M22A82101 2000 30 22 21 44 121 0.940
    GMC53M24A82101 2500 33 24 23 48 132 1.35
    GMC53M27A82101 3000 38 27 26 54 150 1.89
    GMC53M30A82101 4000 42 30 29 60 165 2.53
    GMC53M36A82101 5000 47 36 33 72 198 4.00
    GMC53M39A82101 6300 63 39 37 78 215 5.10
    GMC53M45A82101 8000 60 45 41 90 248 7.92
    GMC53M48A82101 10000 66 48 45 96 264 9.87
    GMC53M52A82101 12000 73 52 50 104 286 13.68
    GMC53M60A82101 16000 81 60 55 120 330 20.23
    GMC53M68A82101 20000 90 68 61 136 374 28.72
    GMC53M72A82101 25000 100 72 67 144 396 34.00

    Stock No. W.L.L.(LBS) Dimensions(mm) Weight(KGS)
    A B C D E
    82101SHM05 100 7 5 5 10 28 0.013
    82101SHM06 160 8 6 6 12 33 0.021
    82101SHM08 250 11 8 8 16 44 0.048
    82101SHM10 400 14 10 10 20 55 0.083
    82101SHM12 600 17 12 12 24 66 0.156
    82101SHM16 1000 21 16 15 32 88 0.330
    82101SHM20 1600 27 20 19 40 110 0.710
    82101SHM22 2000 30 22 21 44 121 0.940
    82101SHM24 2500 33 24 23 48 132 1.350
    82101SHM27 3000 38 27 26 54 150 1.890
    82101SHM30 4000 42 30 29 60 165 2.530
    82101SHM36 5000 47 36 33 72 198 4.000
    82101SHM39 6300 53 39 37 78 215 5.100
    82101SHM45 8000 60 45 41 90 248 7.920
    82101SHM48 10000 66 48 45 96 264 9.870
    82101SHM52 12000 73 52 50 104 286 13.68
    82101SHM60 16000 81 60 55 120 330 20.23
    82101SHM68 20000 90 68 61 136 374. 28.72
    82101SHM72 25000 100 72 67 144 396 34.00
