Galvanized Standard Wire Rope Thimbles for Cable Protection and Eye Terminations
Wire Rope Thimble Sleeve

Galvanized Standard Wire Rope Thimbles for Cable Protection and Eye Terminations

Features:
Material: Galvanized steel
Type: Standard wire rope thimble
Application: Protecting wire rope loops, return eyes, and terminations
Corrosion-resistant for outdoor and marine environments
Provides even load distribution to extend rope life
Size Range: 1/8” – 2-1/2” wire rope diameters available

Typical Applications:
Wire rope eye protection
Lifting and rigging assemblies
Marine and construction cable systems
Industrial machinery cable terminations

Galvanized standard wire rope thimbles are essential fittings designed to protect wire rope loops and enhance the durability of eye terminations in lifting, rigging, and industrial applications. Made from high-quality galvanized steel, these thimbles provide superior corrosion resistance and mechanical strength, ensuring long-lasting performance even in harsh outdoor environments.

The thimble’s contoured design distributes load evenly across the wire rope, reducing wear, preventing deformation, and minimizing the risk of strand damage. They are compatible with a wide range of steel wire rope diameters and are suitable for various rigging, marine, and construction applications.

Contact Us
PREV: Hot-Dip Galvanized Heavy Duty Wire Rope Thimbles
NEXT: No next article

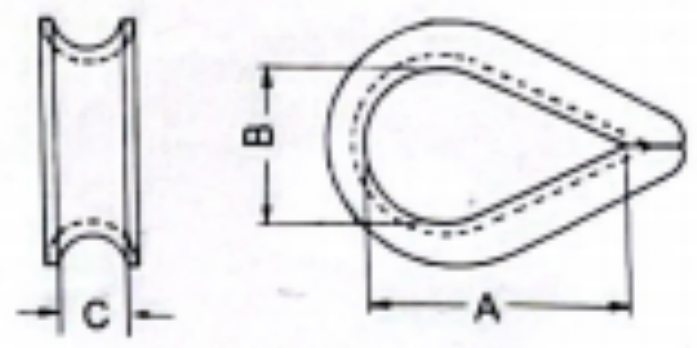

  • Stock No. Rope Dia.(IN) Dimension(IN） Weight(KGS/100PCS)
    A B C
    GMC230125 1/8 1.31 0.69 0.16 3.5
    GMC230187 3/16 1.31 0.69 0.22 3.5
    GMC230250 1/4 1.31 0.69 0.28 3.5
    GMC230312 5/16 1.5 0.81 0.34 4
    GMC230375 3/8 1.63 0.94 0.41 6.7
    GMC230500 1/2 1.88 1.13 0.53 12.5
    GMC230625 5/8 2.25 1.38 0.66 34.5
    GMC230750 3/4 2.5 1.63 0.78 47.1
    GMC230875 7/8 3.5 1.88 0.94 84.6
    GMC231000 1 4.25 2.5 1.06 97.5
    GMC231125 1-1/8 - 1-1/4 4.5 2.75 1.31 175
    GMC231375 1-3/8 7.54 3.54 1.42 278.52
    GMC231500 1-1/2 8.11 4.13 1.56 313.28
    GMC231625 1-5/8 9.06 4.33 1.69 379.72
    GMC231750 1-3/4 9.59 4.33 1.81 487.96
    GMC231875 1-7/8 10.4 4.5 2.05 512.60
    GMC232000 2 10.63 4.5 2.09 616.00
    GMC232500 2-1/2 11.63 5.98 2.52 880

    Stock No. Rope Dia(IN) Weight Per100(LBS) Dimensions(IN)
    A B C
    THLDH/G018000 1/8 3.50 1.31 0.69 0.16
    THLDH/G316000 3/16 3.50 1.31 0.69 0.22
    THLDH/G014000 1/4 3.50 1.31 0.69 0.28
    THLDH/G516000 5/16 4.00 1.50 0.81 0.34
    THLDH/G038000 3/8 6.70 1.63 0.94 0.41
    THLDH/G012000 1/2 12.50 1.88 1.13 0.53
    THLDH/G058000 5/8 34.50 2.25 1.38 0.66
    THLDH/G034000 3/4 47.10 2.50 1.63 0.78
    THLDH/G078000 7/8 84.60 3.50 1.88 0.94
    THLDH/G001000 1 97.50 4.25 2.50 1.06
    THLDH/G118114 1-1/8 - 1-1/4 175.00 4.50 2.75 1.31
    THLDH/G138000 1-3/8 278.52 7.54 3.54 1.42
    THLDH/G112000 1-1/2 313.28 8.11 4.13 1.56
    THLDH/G158000 1-5/8 379.72 9.06 4.33 1.69
    THLDH/G134000 1-3/4 487.96 9.59 4.33 1.81
    THLDH/G178000 1-7/8 512.60 10.40 4.50 2.05
    THLDH/G200000 2 616.00 10.63 4.50 2.09
    THLDH/G212000 2-1/2 880.00 11.63 5.98 2.52
