High-Precision SAFETYLIFT Aluminium Hourglass Sleeve for Wire Rope
Wire Rope Aluminum Sleeve

High-Precision SAFETYLIFT Aluminium Hourglass Sleeve for Wire Rope

Features:
Manufactured from high-quality aluminium alloy with excellent corrosion resistance
Precision hourglass design for even compression and stable load transfer
Heat-treated for superior cold-forming and swaging performance
Provides up to 95% of wire rope strength when correctly swaged
Compatible with various wire rope sizes from 3/64" to 5/8"
Ideal for rigging assemblies, lifting slings, and marine cable terminations

Applications:
Wire rope eye terminations
Lifting and rigging assemblies
Construction hoisting systems
Marine and offshore rigging
General industrial applications

The SAFETYLIFT aluminium hourglass sleeve is a specialized wire rope ferrule designed to provide strong, secure, and long-lasting terminations. Made from premium-grade aluminium alloy and extruded to a precise hourglass profile, this sleeve delivers smooth swaging performance and consistent holding strength.

Its hourglass-shaped design ensures optimal compression during the swaging process, minimizing rope distortion and maintaining uniform load distribution. This makes it a reliable solution for lifting, rigging, and marine applications where performance and safety are critical.

Each sleeve is manufactured to meet high dimensional accuracy and cold-forming requirements, achieving up to 95% of the wire rope’s rated strength when properly swaged. The aluminium alloy provides excellent resistance to corrosion and fatigue, suitable for use in harsh outdoor or marine environments.

Contact Us
PREV: SAFETYLIFT Aluminium Ferrule JIS Type Outer Oval Inner Hourglass Design
NEXT: High-Strength SAFETYLIFT Aluminium Oval Sleeve

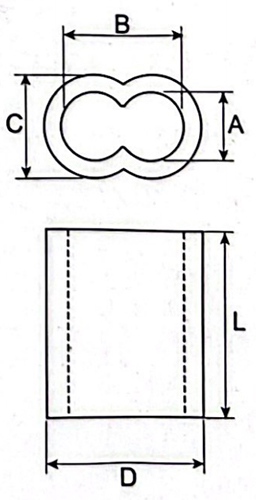

  • Part No. Size A B C D L Weight(KGS/100PCS)
    in. mm in. mm in. mm in. mm in. mm in. mm
    GMC170047 3/64 1.19 1/16 1.59 1/8 3.18 9/64 3.6 13/64 5.2 3/8 9.5 0.276
    GMC170062 1/16 1.59 5/64 1.98 5/32 3.97 11/64 4.4 1/4 6.4 3/8 9.5 0.433
    GMC170078 5/64 1.98 3/32 2.38 3/16 4.76 13/64 5.2 5/16 7.9 3/8 9.5 0.645
    GMC170093 3/32 2.38 1/8 3.18 1/4 6.35 9/32 7.1 13/32 10.3 1/2 12.7 1.45
    GMC170125 1/8 3.18 5/32 3.97 5/16 7.94 11/32 8.7 1/2 12.7 5/8 15.8 2.70
    GMC170156 5/32 3.97 3/16 4.76 3/8 9.53 3/8 9.53 9/16 14.3 11/16 17.4 3.67
    GMC170187 3/16 4.76 7/32 5.56 7/16 11.11 7/16 11.11 21/32 16.7 1/2 25.4 7.18
    GMC170218 7/32 5.56 1/4 6.35 1/2 12.7 1/2 12.7 3/4 19 1-1/16 26.9 10.00
    GMC170250 1/4 6.35 9/32 7.14 9/16 14.29 17/32 13.5 13/16 20.6 1-1/8 28.5 11.76
    GMC170281 9/32 7.14 5/16 7.94 5/8 15.88 9/16 14.3 7/8 22.2 1-3/16 30.1 13.62
    GMC170312 5/16 7.94 3/8 9.53 3/4 19.05 11/16 17.5 1-1/32 26.2 1-1/4 31.7 20.94
    GMC170375 3/8 9.53 7/16 11.11 7/8 22.22 3/4 19.05 1/5/32 29.4 1-7/16 36.5 28.18
    GMC170437 7/16 11.11 1/2 12.7 1/2 25.4 15/16 23.8 1-7/16 36.5 1-11/16 42.8 52.00
    GMC170500 1/2 12.70 9/16 14.29 1-1/8 28.58 1-1/16 27 1-5/8 41.3 2 50.8 80.15
    GMC170562 9/16 14.29 5/8 15.88 1-1/4 31.75 1-1/8 28.6 1-3/4 44.5 2-1/8 53.9 99.88
    GMC170625 5/8 15.88 11/16 17.46 1-3/8 34.93 1-1/4 31.8 1-15/16 49.2 2-1/2 63.5 139.78

    Part No. Size A B C D L Weight(KGS/100PCS)
    in mm in mm in mm in mm in mm in mm
    SL980364 3/64 1.19 1/16 1.59 1/8 3.18 9/64 3.6 13/64 5.2 3/8 9.5 0.276
    SL980116 1/16 1.58 5/64 1.98 5/32 3.97 11/64 4.4 1/4 6.4 3/8 9.5 0.433
    SL980564 5/64 1.98 3/32 2.38 3/16 4.76 13/64 5.2 5/16 7.9 3/8 9.5 0.645
    SL980332 3/32 2.38 1/8 3.18 1/4 6.35 9/32 7.1 13/32 10.3 1/2 12.7 1.45
    SL980108 1/8 3.18 5/32 3.97 5/16 7.94 11/32 8.7 1/2 12.7 5/8 15.8 2.70
    SL980532 5/32 3.97 3/16 4.76 3/8 9.53 3/8 9.53 9/16 14.3 11/16 17.4 3.67
    SL980316 3/16 4.76 7/32 5.56 7/16 11.11 7/16 11.11 21/32 16.7 1 25.4 7.18
    SL980732 7/32 5.56 1/4 6.35 1/2 12.70 1/2 12.7 3/4 19 1-1/16 26.9 10.00
    SL980104 1/4 6.35 9/32 7.14 9/16 14.29 17/32 13.5 13/16 20.6 1-1/8 28.5 11.76
    SL980932 9/32 7.14 5/16 7.94 5/8 15.88 9/16 14.3 7/8 22.2 1-3/16 30.1 13.62
    SL980516 5/16 7.94 3/8 9.53 23/32 19.05 11/16 17.5 1-1/32 26.2 1-1/4 31.7 20.94
    SL980308 3/8 9.53 7/16 11.11 27/32 22.23 3/4 19.1 1-5/32 29.4 1-7/16 36.5 28.18
    SL980716 7/16 11.1 1/2 12.7 1 25.40 15/16 23.8 1-7/16 36.5 1-11/16 42.8 52.00
    SL980102 1/2 12.7 9/16 14.29 1-1/8 28.58 1-1/16 27 1-5/8 41.3 2 50.8 80.15
    SL980916 9/16 14.29 5/8 15.88 1-1/4 31.75 1-1/8 28.6 1-3/4 44.5 2-18 53.9 99.88
    SL980508 5/8 15.88 11/16 17.46 1-3/8 34.93 1-1/4 31.8 1-15/16 49.2 2-12 63.5 139.78
