High-Strength SAFETYLIFT Aluminium Oval Sleeve
Wire Rope Aluminum Sleeve

High-Strength SAFETYLIFT Aluminium Oval Sleeve

Features:
Extruded from premium aluminium alloy for high strength and corrosion resistance
Heat-treated for enhanced cold-forming and swaging performance
Achieves up to 95% of wire rope breaking strength when properly swaged
Smooth interior profile minimizes rope damage during swaging
Suitable for various diameters from 1/4" to 1-1/2"
Ideal for wire rope slings, rigging assemblies, and lifting systems

Applications:
Wire rope terminations
Lifting and rigging slings
Construction hoisting assemblies
Marine and offshore equipment
General industrial wire rope fittings

The SAFETYLIFT aluminium oval sleeve is a precision-engineered wire rope accessory designed for creating secure eye terminations and return eye splices. Manufactured from high-quality extruded aluminium alloy, each sleeve undergoes a special heat treatment to achieve superior cold-forming and swaging characteristics.

When properly swaged, a return eye splice made with SAFETYLIFT Aluminium Sleeves can reach up to 95% of the catalog strength of improved plow steel wire rope, making it an excellent choice for load-bearing applications.

The oval-shaped design offers consistent compression and reliable grip on the wire rope, ensuring safe and stable performance under heavy loads. These sleeves are widely used in lifting, rigging, marine, and construction industries for producing strong, permanent wire rope terminations.

Contact Us
PREV: High-Precision SAFETYLIFT Aluminium Hourglass Sleeve for Wire Rope
NEXT: Seamless Aluminium Round Sleeves for Wire Rope Termination

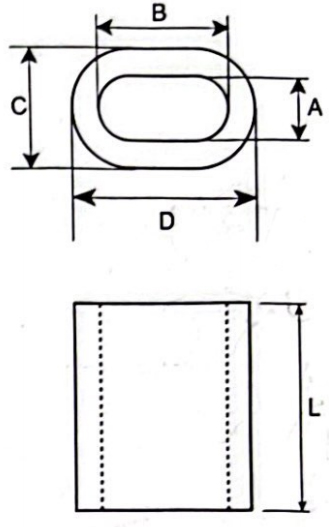

  • Part No. Size(IN) Dimension(IN) Weight(KGS/100PCS)
    A B C D L
    GMC160250 1/4 19/64 19/32 17/32 27/32 1 2.3
    GMC160312 5/16 3/8 3/4 21/32 1-1/32 1-17/84 4.3
    GMC160375 3/8 7/16 27/32 3/4 1-5/32 1-3/8 5.3
    GMC160437 7/16 1/2 1 29/32 1-13/32 1-23/32 11
    GMC160500 1/2 19/32 1-11/64 1-1/32 1-5/8 1-15/16 16.5
    GMC160562 9/16 23/32 1-3/8 1-7/32 1-57/64 2-7/32 22
    GMC160625 5/8 3/4 1-1/2 1-3/8 2-2/32 2-1/2 32
    GMC160750 3/4 53/64 1-11/16 1-1/2 2-3/8 2-7/8 52
    GMC160875 7/8 61/64 1-7/8 1-11/16 2-5/8 3 67
    GMC161000 1 1-3/32 2-7/32 1-31/32 3-3/32 3-3/4 125
    GMC161125 1-1/8 1-9/32 2-9/16 2-5/16 3-19/32 4-9/32 172
    GMC161250 1-1/4 1-13/32 2-25/32 2-1/2 3-7/8 4-7/16 214
    GMC161500 1-1/2 1-21/32 3-19/64 3-1/8 4-3/4 5-35/64 390

    Part No. Size A(in) B(in) C(in) D(in) L(in) Weight(KGS/100PCS)
    SL990104 1/4" 19/64 19/32 17/32 27/32 1 2.3
    SL990516 5/16" 3/8 3/4 21/32 1-1/32 1-17/84 4.3
    SL990308 3/8" 7/16 27/32 3/4 1-5/32 1-3/8 5.3
    SL990716 7/16" 1/2 1 29/32 1-13/32 1-23/32 11
    SL990102 1/2" 19/32 1-11/64 1-1/32 1-5/8 1-15/16 16.5
    SL990916 9/16" 23/32 1-3/8 1-7/32 1-57/64 2-7/32 22
    SL990508 5/8" 3/4 1-1/2 1-3/8 2-3/32 2-1/2 32
    SL990304 3/4" 53/64 1-11/16 1-1/2 2-3/8 2-7/8 52
    SL990708 7/8" 61/64 1-7/8 1-11/16 2-5/8 3 67
    SL991000 1" 1-3/32 2-7/32 1-31/32 3-3/32 3-3/4 125
    SL991108 11/8" 1-9/32 2-9/16 2-5/16 3-19/32 4-9/32 172
    SL991104 11/4" 1-13/32 2-25/32 2-1/2 3-7/8 4-7/16 214
    SL991102 11/2" 1-21/32 3-19/64 3-1/8 4-3/4 5-35/64 390
