G80 PWB New Type Clevis Shortening Hook

Key specifications (by stock number):​

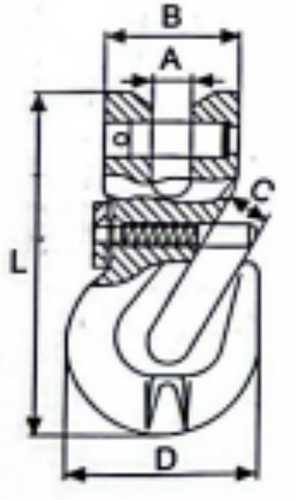

GMC40WL0112: W.L.L. 1.12 tons, M.B.S. 4.48 tons, dimensions (A×B×C×D×L) 8.0×32.0×8.0×43.5×75.0mm, weight 0.28kg/pc​

GMC40WL0200: W.L.L. 2.00 tons, M.B.S. 8.00 tons, dimensions 9.5×35.0×11.0×49.5×89.0mm, weight 0.33kg/pc​

GMC40WL0315: W.L.L. 3.15 tons, M.B.S. 12.60 tons, dimensions 12.5×42.5×13.2×70.5×126.5mm, weight 0.88kg/pc​

GMC40WL0530: W.L.L. 5.30 tons, M.B.S. 21.20 tons, dimensions 15.0×53.0×16.5×90.0×163.5mm, weight 1.85kg/pc​

GMC40WL0800: W.L.L. 8.00 tons, M.B.S. 32.00 tons, dimensions 19.5×65.5×19.2×112.5×183.5mm, weight 3.24kg/pc​

Users can select the appropriate model based on load weight and installation space, ensuring efficient and safe lifting operations.

The G80 PWB new type clevis shortening hook is a professional lifting accessory designed for use with chain slings, primarily applied in industrial lifting scenarios such as factories, construction sites, and logistics warehouses. It helps adjust chain lengths flexibly to match different lifting heights and load positions, ensuring stable connection between slings and loads.​

Made of G80 grade alloy steel (quenched and tempered), the hook features a 4:1 safety ratio between Minimum Breaking Strength (M.B.S.) and Working Load Limit (W.L.L.), meeting basic lifting safety standards. Its clevis design prevents mismatches with chains, while the deep chain groove enhances connection reliability. Surface treatment is typically powder coating (RAL 1003 yellow or RAL 3020 red) for corrosion resistance.​
