G80 Pwb New Type Eye Shortening Hook

The G80 PWB  new type eye shortening hook is a G80-grade hoisting component designed for industrial lifting, construction, and logistics applications, where secure load adjustment and reliable performance are essential.​

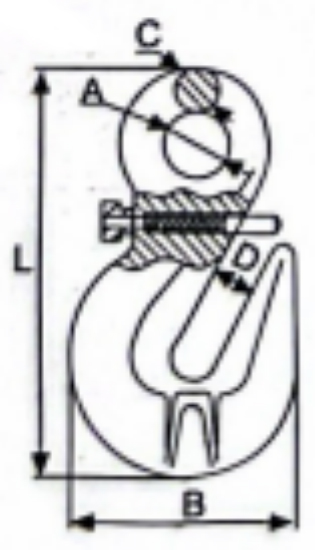

Available in three stock variants—GMC41WL0200, GMC41WL0315, and GMC41WL0530—it caters to different load requirements: working load limits (W.L.L.) range from 2.00 to 5.30 tons, with minimum breaking strengths (M.B.S.) of 8.00 to 21.20 tons (four times the W.L.L., aligning with G80 safety standards). Physical dimensions vary by model: lengths (L) from 88.5mm to 158.0mm, eye diameters (A) from 17.0mm to 26.0mm, and opening widths (B) from 50.0mm to 96.0mm, ensuring compatibility with diverse chains and rigging setups. Weights per unit (0.29kg to 1.62kg) keep handling manageable.​

Key advantages include its eye-shaped design for quick, secure connection to chains or wire ropes, reducing assembly time. The shortening function allows flexible adjustment of chain length, eliminating the need for additional adapters and adapting to varying lifting heights. Its robust construction (with thickness dimensions C: 9.5mm–15.5mm, D: 11.0mm–16.5mm) resists wear, while the compact form factor suits tight spaces.​

Ideal for tasks like equipment installation, cargo handling, or structural lifting, this hook balances safety, versatility, and practicality for daily hoisting operations.​
​
