Hot-Dip Galvanized Drop Forged Anchor Shackles
  • Hot-Dip Galvanized Drop Forged Anchor Shackles
  • Hot-Dip Galvanized Drop Forged Anchor Shackles
Wire Rope Shackle

Hot-Dip Galvanized Drop Forged Anchor Shackles

Features:
Material: Drop-forged steel with hot-dip galvanization

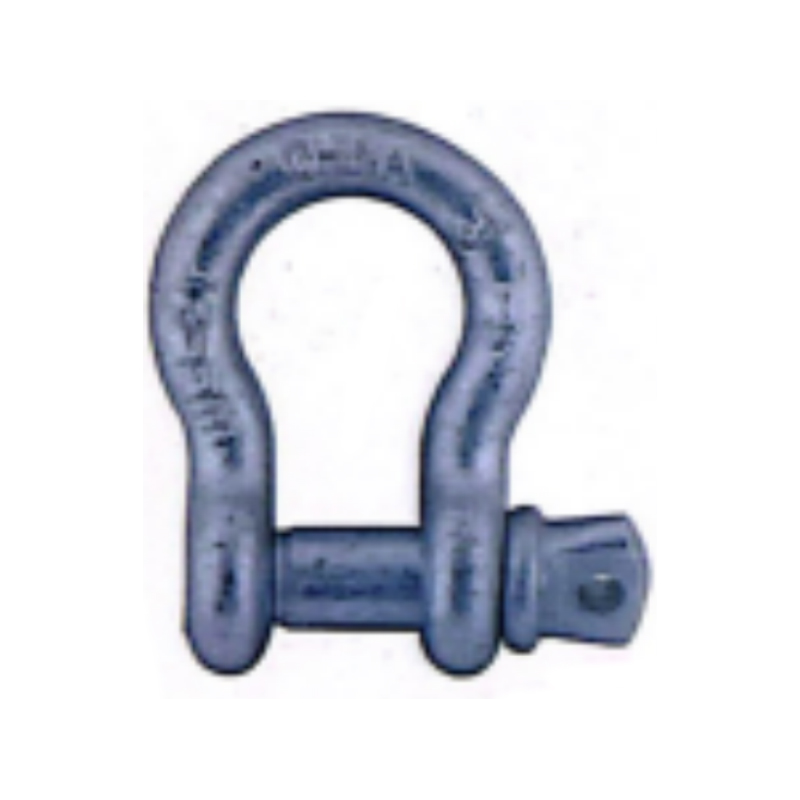

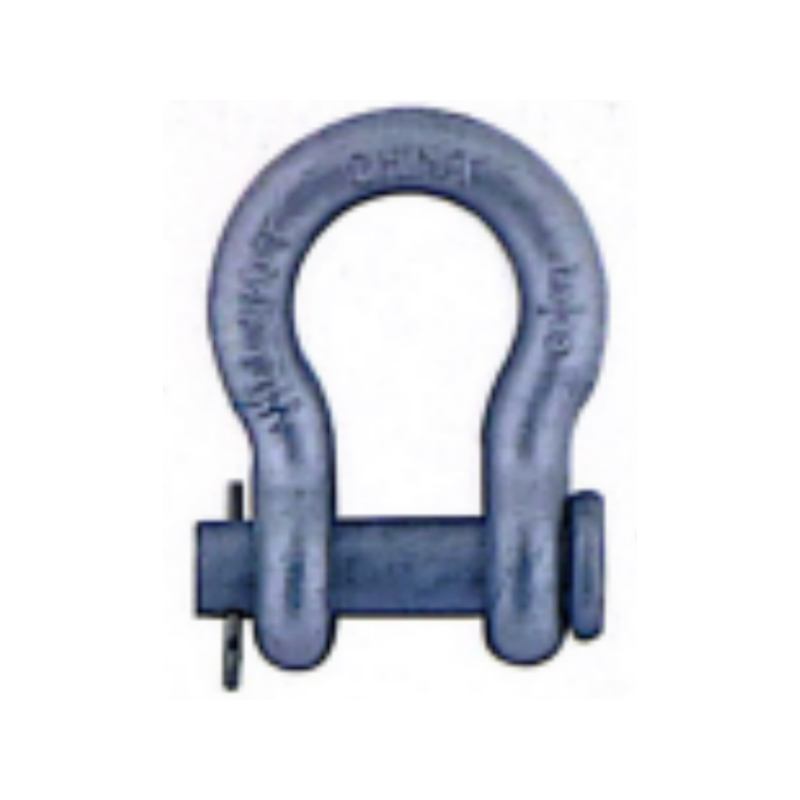

Type: Anchor Shackle, available in Screw Pin or Round Pin
Application: Heavy-duty lifting, rigging, and industrial connections
Multi-directional load distribution for safe operation
Wide range of Working Load Limits (0.33 – 55 tons)
Designed for durability and long service life

Typical Applications:
Lifting and hoisting operations
Construction and industrial rigging
Marine and offshore lifting systems
Securing chains, wire ropes, and slings in heavy-duty applications

Hot-dip galvanized drop forged anchor shackles are robust lifting and rigging components designed to provide secure connections in demanding industrial, marine, and construction environments. Made from drop-forged high-strength steel and coated with hot-dip galvanization, these shackles deliver exceptional durability, corrosion resistance, and mechanical performance under heavy loads.

The anchor shackle design allows for multi-directional load distribution, ensuring stable and safe connections for chains, wire ropes, and slings. Available in screw pin and round pin types, these shackles cover a wide range of working load limits, making them ideal for various lifting, hoisting, and rigging applications.

Contact Us
PREV: No previous article
NEXT: Galvanized DIN 82101 Form A Shackle

  • Stock No. Nominal Size(IN) W.L.L.(Tons) Dimension(IN) Weight
    LBS/PC
    Screw Pin Type    		 Weight
    LBS/PC
    Round Pin Type

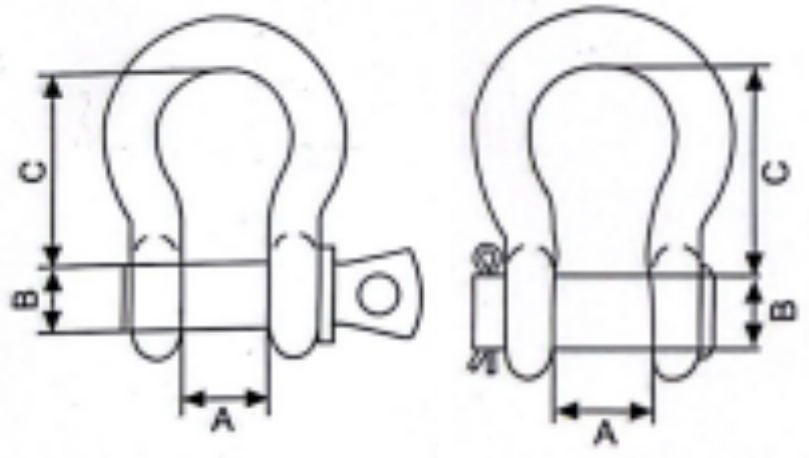

    A B C
    GMC53M05A82101 3/16 0.33 0.38 0.25 0.88 0.06 0.06
    GMC53M06A82101 1/4 0.50 0.47 0.31 1.13 0.10 0.13
    GMC53M08A82101 5/16 0.75 0.53 0.38 1.22 0.19 0.18
    GMC53M10A82101 3/8 1.00 0.66 0.44 1.44 0.31 0.29
    GMC53M12A82101 7/16 1.50 0.75 0.50 1.69 0.38 0.38
    GMC53M16A82101 1/2 2.00 0.81 0.63 1.88 0.72 0.71
    GMC53M20A82101 5/8 3.25 1.06 0.75 2.38 1.37 1.50
    GMC53M22A82101 3/4 4.75 1.25 0.88 2.81 2.35 2.32
    GMC53M24A82101 7/8 6.50 1.44 1.00 3.31 3.62 3.49
    GMC53M27A82101 1 8.50 1.69 1.13 3.75 5.03 5.00
    GMC53M30A82101 1 1/8 9.50 1.81 1.25 4.25 7.41 6.97
    GMC53M36A82101 1 1/4 12.00 2.03 1.38 4.69 9.05 9.75
    GMC53M39A82101 1 3/8 13.50 2.25 1.50 5.25 13.53 13.25
    GMC53M45A82101 1 1/2 17.00 2.38 1.63 5.75 17.20 17.25
    GMC53M48A82101 1 3/4 25.00 2.88 2.00 7.00 27.78 29.46
    GMC53M52A82101 2 35.00 3.25 2.25 7.75 45.00 45.75
    GMC53M60A82101 2 1/2 55.00 4.13 2.75 10.50 85.75 87.12

    Stock No. Nominal Size(IN) W.L.L.(Tons) Dimensions(IN) Weight(LBS)
    Screw Pin Type    		 Weight(LBS)
    Round Pin Type
    A B C
    HGLR316SPAS/RPAS 3/16 1/3 0.38 0.25 0.88 0.06 0.06
    HGLR014SPAS/RPAS 1/4 1/2 0.47 0.31 1.13 0.10 0.13
    HGLR516SPAS/RPAS 5/16 3/4 0.53 0.38 1.22 0.19 0.18
    HGLR038SPAS/RPAS 3/8 1 0.66 0.44 1.44 0.31 0.29
    HGLR716SPAS/RPAS 7/16 1 1/2 0.75 0.50 1.69 0.38 0.38
    HGLR012SPAS/RPAS 1/2 2 0.81 0.63 1.88 0.72 0.71
    HGLR058SPAS/RPAS 5/8 3 1/4 1.06 0.75 2.38 1.37 1.50
    HGLR034SPAS/RPAS 3/4 4 3/4 1.25 0.88 2.81 2.35 2.32
    HGLR078SPAS/RPAS 7/8 6 1/2 1.44 1.00 3.31 3.62 3.49
    HGLR001SPAS/RPAS 1 8 1/2 1.69 1.13 3.75 5.03 5.00
    HGLR118SPAS/RPAS 1 1/8 9 1/2 1.81 1.25 4.25 7.41 6.97
    HGLR114SPAS/RPAS 1 1/4 12 2.03 1.38 4.69 9.05 9.75
    HGLR138SPAS/RPAS 1 3/8 13 1/2 2.25 1.50 5.25 13.53 13.25
    HGLR112SPAS/RPAS 1 1/2 17 2.38 1.63 5.75 17.20 17.25
    HGLR134SPAS/RPAS 1 3/4 25 2.88 2.00 7.00 27.78 29.46
    HGLR002SPAS/RPAS 2 35 3.25 2.25 7.75 45.00 45.75
    HGLR212SPAS/RPAS 2 1/2 55 4.13 2.75 10.50 85.75 87.12
